A crank loaded by a force F = 300 lb causes twisting and bending of a 34-in-diameter shaft fixed to a support. For point

Post by answerhappygod »

A Crank Loaded By A Force F 300 Lb Causes Twisting And Bending Of A 34 In Diameter Shaft Fixed To A Support For Point 1
A Crank Loaded By A Force F 300 Lb Causes Twisting And Bending Of A 34 In Diameter Shaft Fixed To A Support For Point 1 (329.25 KiB) Viewed 35 times

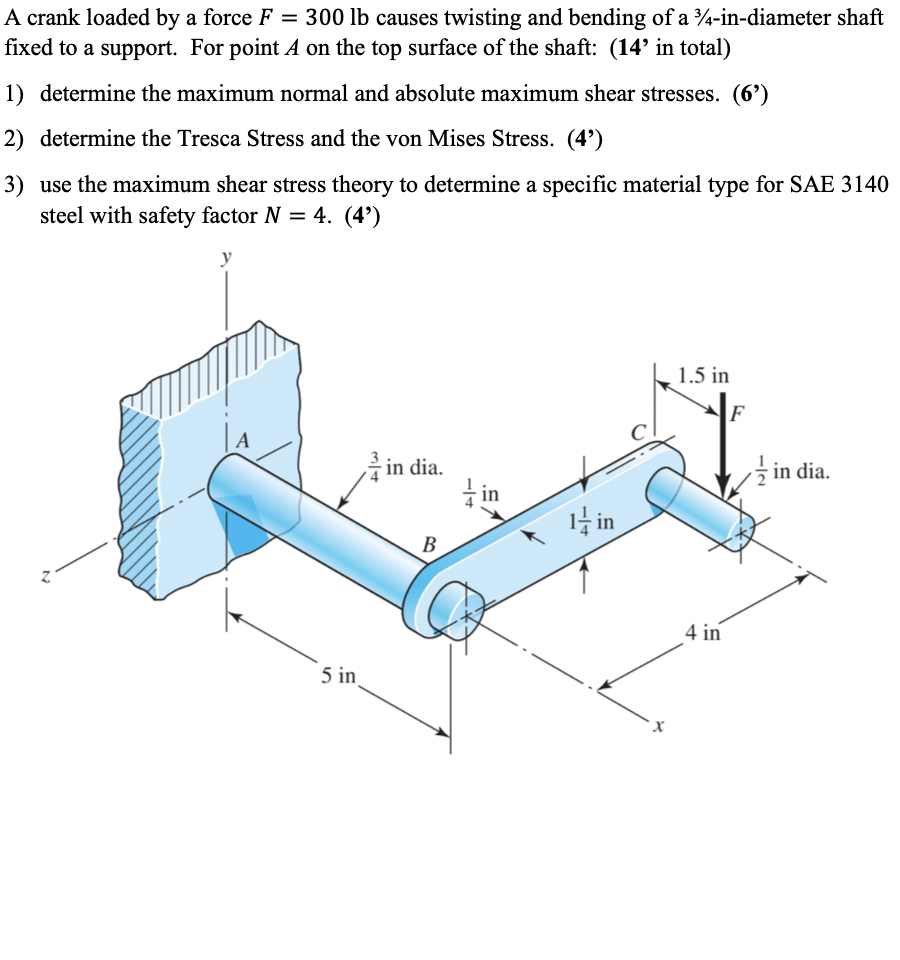

A crank loaded by a force F = 300 lb causes twisting and bending of a 34-in-diameter shaft fixed to a support. For point A on the top surface of the shaft: (14’ in total) 1) determine the maximum normal and absolute maximum shear stresses. (6) 2) determine the Tresca Stress and the von Mises Stress. (4') 3) use the maximum shear stress theory to determine a specific material type for SAE 3140 steel with safety factor N = 4. (4') у 1.5 in ż in dia. ż . in dia. - + & in 11 in В. z 4 in 5 in х
