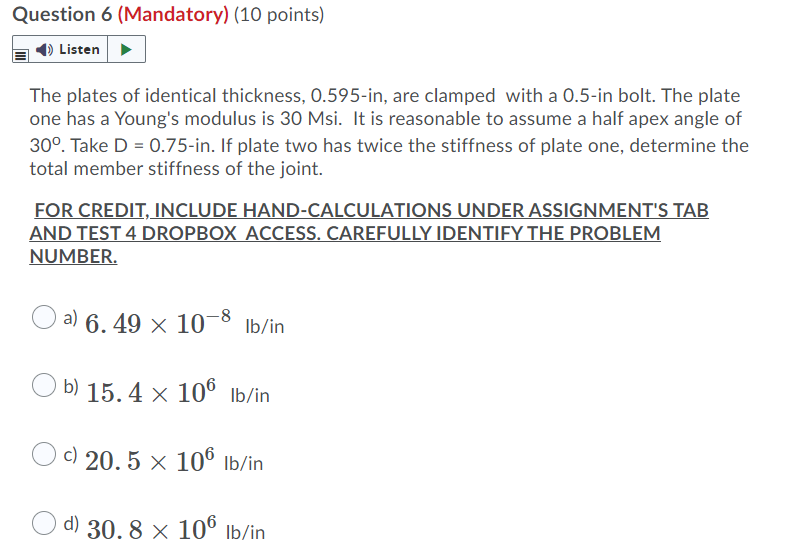

Question 6 (Mandatory) (10 points) Listen → The plates of identical thickness, 0.595-in, are clamped with a 0.5-in bolt.

[answerhappygod]

Question 6 Mandatory 10 Points Listen The Plates Of Identical Thickness 0 595 In Are Clamped With A 0 5 In Bolt 1 (48.27 KiB) Viewed 36 times

Question 6 (Mandatory) (10 points) Listen → The plates of identical thickness, 0.595-in, are clamped with a 0.5-in bolt. The plate one has a Young's modulus is 30 Msi. It is reasonable to assume a half apex angle of 30°. Take D = 0.75-in. If plate two has twice the stiffness of plate one, determine the total member stiffness of the joint. FOR CREDIT, INCLUDE HAND-CALCULATIONS UNDER ASSIGNMENT'S TAB AND TEST 4 DROPBOX ACCESS. CAREFULLY IDENTIFY THE PROBLEM NUMBER. a) 6.49 x 10-8 lb/in b) 15.4 x 106 lb/in c) 20.5 x 106 lb/in od) 30.8 x 106 lb/in )
