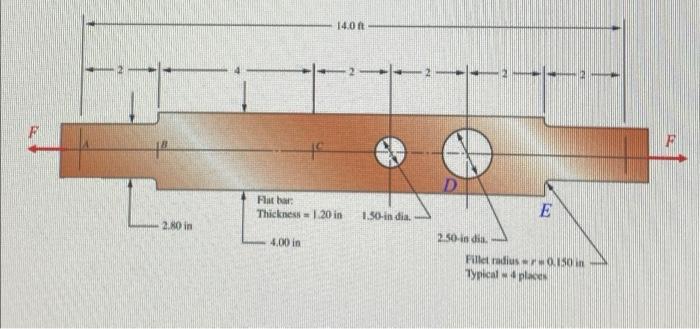

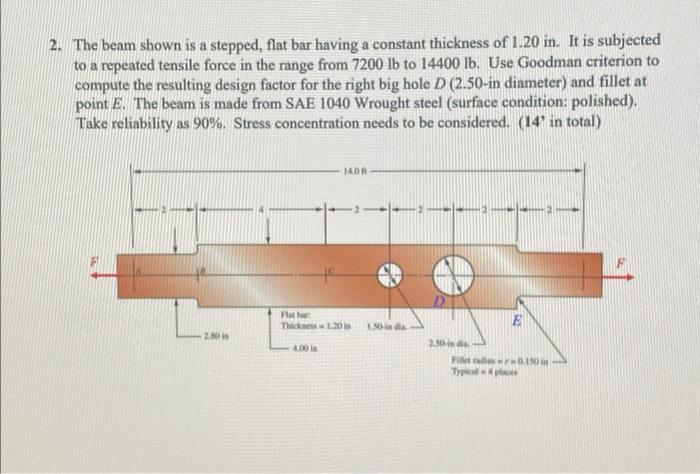

2. The beam shown is a stepped, flat bar having a constant thickness of 1.20 in. It is subjected to a repeated tensile force in the range from 7200 lb to 14400 lb. Use Goodman criterion to compute the resulting design factor for the right big hole D (2.50-in diameter) and fillet at point E. The beam is made from SAE 1040 Wrought steel (surface condition: polished). Take reliability as 90%. Stress concentration needs to be considered. (14" in total) 140 Father Thick2016 E TU 2. 2.50 india Filter Type
14.01 D Flachar Thickness 1.20 in 1.30-india E 2.NO in 4.00 in 2150-india Fillet radius 150 in Typical places
