(2) The tension members having a square cross-section with the slide length a are fastened together using two bolts, one

Post by answerhappygod »

2 The Tension Members Having A Square Cross Section With The Slide Length A Are Fastened Together Using Two Bolts One 1
2 The Tension Members Having A Square Cross Section With The Slide Length A Are Fastened Together Using Two Bolts One 1 (35.12 KiB) Viewed 32 times

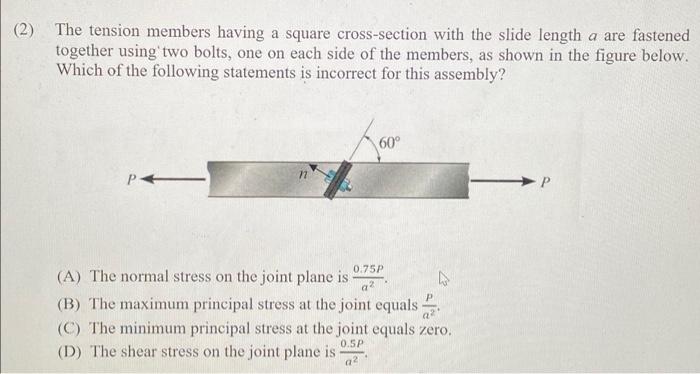

(2) The tension members having a square cross-section with the slide length a are fastened together using two bolts, one on each side of the members, as shown in the figure below. Which of the following statements is incorrect for this assembly? 60° 0.75P a2 P (A) The normal stress on the joint plane is (B) The maximum principal stress at the joint equals (C) The minimum principal stress at the joint equals zero. (D) The shear stress on the joint plane is 22 0.5P 02
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
