Sys Drawing #3 10 mm GRID Add dimensions and GD&T accordingly GD&T 1. Datums A, B, and Care the bottom, left, and front

Post by answerhappygod »

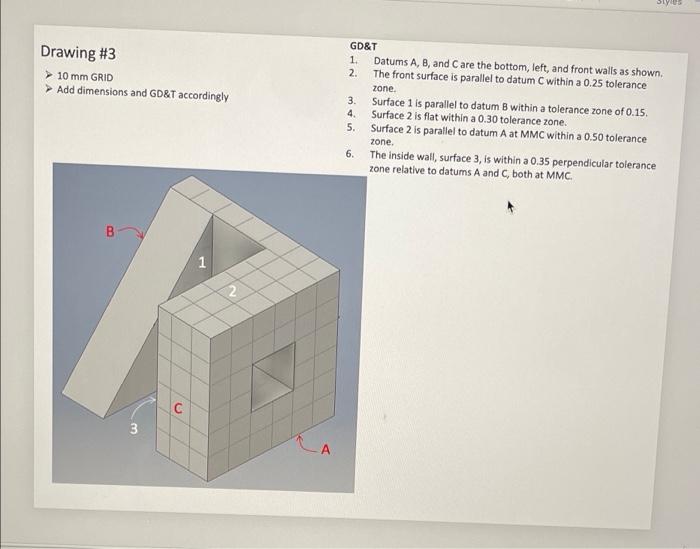

Sys Drawing 3 10 Mm Grid Add Dimensions And Gd T Accordingly Gd T 1 Datums A B And Care The Bottom Left And Front 1
Sys Drawing 3 10 Mm Grid Add Dimensions And Gd T Accordingly Gd T 1 Datums A B And Care The Bottom Left And Front 1 (35.85 KiB) Viewed 39 times
Sys Drawing #3 10 mm GRID Add dimensions and GD&T accordingly GD&T 1. Datums A, B, and Care the bottom, left, and front walls as shown. 2. The front surface is parallel to datum C within a 0.25 tolerance zone 3. Surface 1 is parallel to datum B within a tolerance zone of 0.15. Surface 2 is flat within a 0.30 tolerance zone. 5. Surface 2 is parallel to datum A at MMC within a 0.50 tolerance The inside wall, surface 3, is within a 0.35 perpendicular tolerance zone relative to datums A and C, both at MMC. 4. zone. 6. B С 3
