(1) For the 2D stress state in the figure below, which of the following stress Mohr's circles is correct for determinati

[answerhappygod]

1 For The 2d Stress State In The Figure Below Which Of The Following Stress Mohr S Circles Is Correct For Determinati 1 (26.69 KiB) Viewed 41 times

1 For The 2d Stress State In The Figure Below Which Of The Following Stress Mohr S Circles Is Correct For Determinati 2 (38.64 KiB) Viewed 41 times

1 For The 2d Stress State In The Figure Below Which Of The Following Stress Mohr S Circles Is Correct For Determinati 3 (28.54 KiB) Viewed 41 times

1 For The 2d Stress State In The Figure Below Which Of The Following Stress Mohr S Circles Is Correct For Determinati 4 (22.67 KiB) Viewed 41 times

1 For The 2d Stress State In The Figure Below Which Of The Following Stress Mohr S Circles Is Correct For Determinati 5 (32.44 KiB) Viewed 41 times

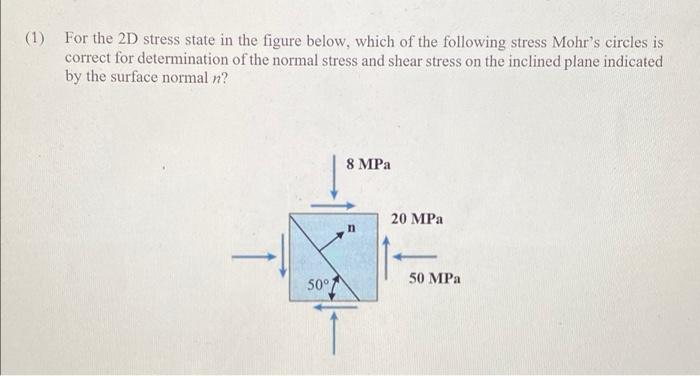

(1) For the 2D stress state in the figure below, which of the following stress Mohr's circles is correct for determination of the normal stress and shear stress on the inclined plane indicated by the surface normal n? 8 MPa 20 MPa n 50° 50 MPa

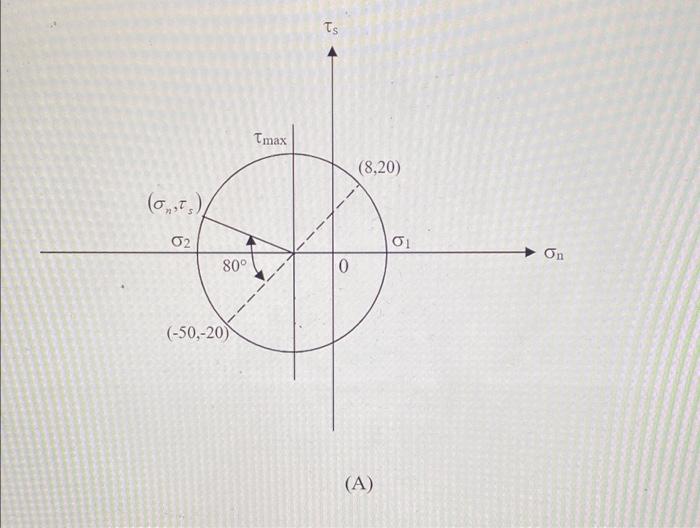

τς Ο Tmax (8,20) (στ.), σ2 σι On 80° 0 (-50,-20) (Α)

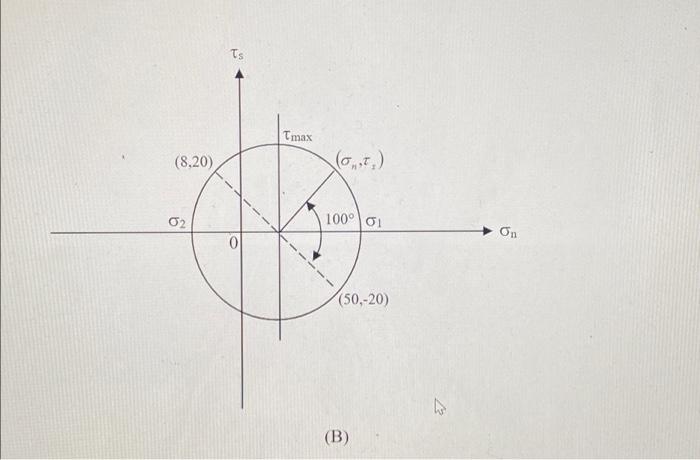

T's Tmax (8.20) 02 6 100º01 On 0 (50,-20) his (B)

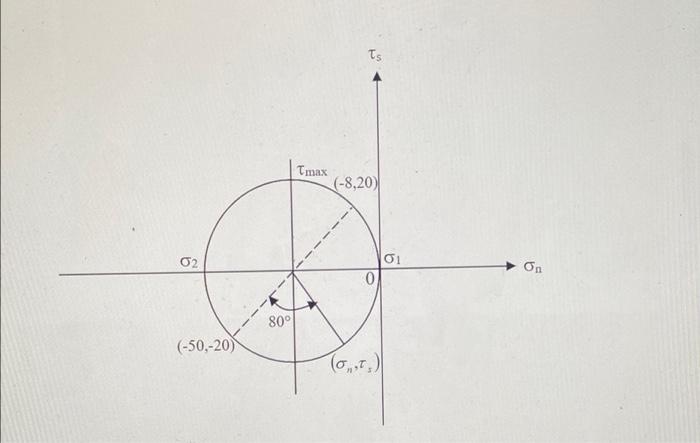

τς Tmax (-8,20) 02 01 On 0 800 (-50,-20) (0,,,)

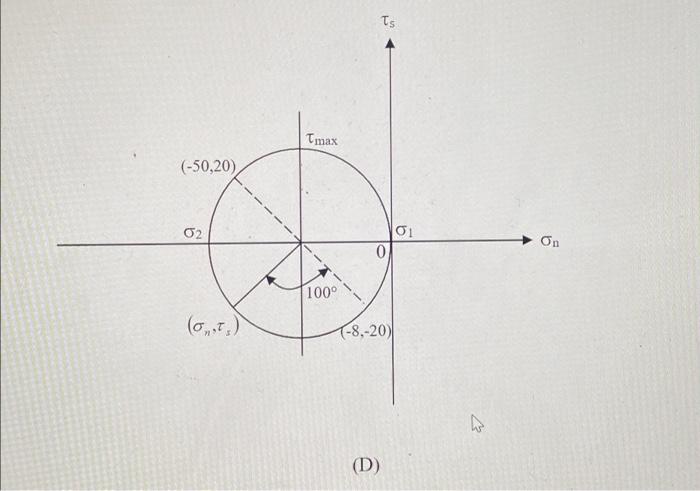

τς Tmax (-50,20) 02 σι ση 0 100° (στ) 7-8,-20 (D)
