Please answer all parts

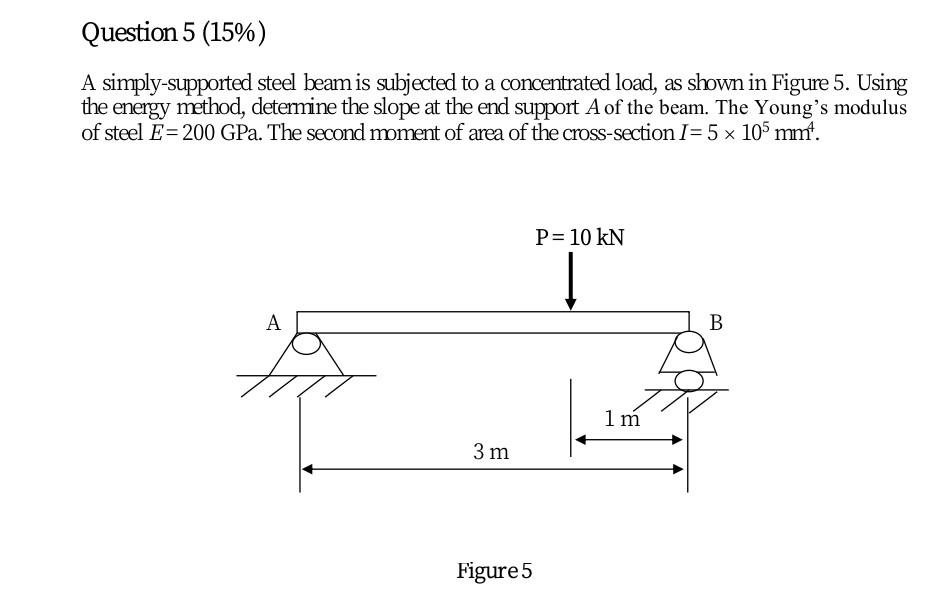

Question 5 (15%) A simply-supported steel beam is subjected to a concentrated load, as shown in Figure 5. Using the energy method, determine the slope at the end support A of the beam. The Young's modulus of steel E= 200 GPa. The second moment of area of the cross-section 1=5 x 105 mm. P= 10 kN A B 1 m 3 m Figure 5
