Suppose a shaft is loaded statically as shown and that its o all = 120 MPa. Determine the smallest permissible diameter

Post by answerhappygod »

Suppose A Shaft Is Loaded Statically As Shown And That Its O All 120 Mpa Determine The Smallest Permissible Diameter 1
Suppose A Shaft Is Loaded Statically As Shown And That Its O All 120 Mpa Determine The Smallest Permissible Diameter 1 (50.07 KiB) Viewed 42 times

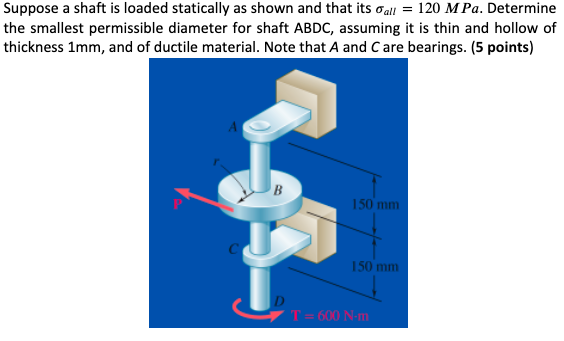

Suppose a shaft is loaded statically as shown and that its o all = 120 MPa. Determine the smallest permissible diameter for shaft ABDC, assuming it is thin and hollow of thickness 1mm, and of ductile material. Note that A and C are bearings. (5 points) А B 150 mm 3 150 mm T = 600 Nm
