Refer to the venturl channel below. If the diameter at point Dis 1/3 the diameter a point B. Then the velocity a point D

Post by answerhappygod »

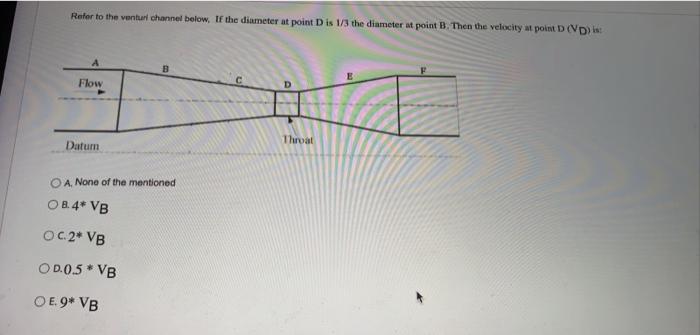

Refer To The Venturl Channel Below If The Diameter At Point Dis 1 3 The Diameter A Point B Then The Velocity A Point D 1
Refer To The Venturl Channel Below If The Diameter At Point Dis 1 3 The Diameter A Point B Then The Velocity A Point D 1 (24.54 KiB) Viewed 38 times
Refer to the venturl channel below. If the diameter at point Dis 1/3 the diameter a point B. Then the velocity a point D (VD) B Flow Datum Throat O A None of the mentioned 8.4* VB OC. 2* VB OD.0.5 * VB OE. 9* VB
