Derive the differential equations that describe the behaviour of the mechanical and electrical system as shown below and

Post by answerhappygod »

Derive The Differential Equations That Describe The Behaviour Of The Mechanical And Electrical System As Shown Below And 1
Derive The Differential Equations That Describe The Behaviour Of The Mechanical And Electrical System As Shown Below And 1 (42.13 KiB) Viewed 34 times

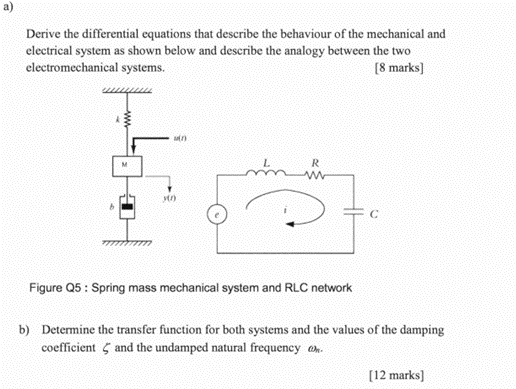

Derive the differential equations that describe the behaviour of the mechanical and electrical system as shown below and describe the analogy between the two electromechanical systems. [8 marks) in ta R w с Figure Q5 : Spring mass mechanical system and RLC network b) Determine the transfer function for both systems and the values of the damping coefficient and the undamped natural frequency eh. [12 marks]
