1. A high-strength steel disk of constant thickness with outer radius c is press fit on a solid steel shaft of radius b.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. A high-strength steel disk of constant thickness with outer radius c is press fit on a solid steel shaft of radius b.

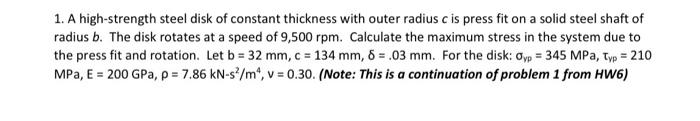

1. A high-strength steel disk of constant thickness with outer radius c is press fit on a solid steel shaft of radius b. The disk rotates at a speed of 9,500 rpm. Calculate the maximum stress in the system due to the press fit and rotation. Let b = 32 mm, c = 134 mm, 8 = .03 mm. For the disk: Opp = 345 MPa, Typ = 210 MPa, E = 200 GP, p = 7.86 kN-s/mº, v = 0.30. (Note: This is a continuation of problem 1 from HW6)
