REF134A A Cascade refrigeration system using flash tank and intercooler is operating an evaporator with a capacity of 10

[answerhappygod]

REF134A
A Cascade refrigeration system using flash tank and intercooler
is operating an evaporator with a capacity of 10 tons at a
temperature of -30°C. The flash tank and intercooler is operated at
0.40 MPa. If the condensing temperature is 50°C, determine the COP
and the refrigerating efficiency of the system. Draw the schematic
diagram of the system and assume ideal conditions.

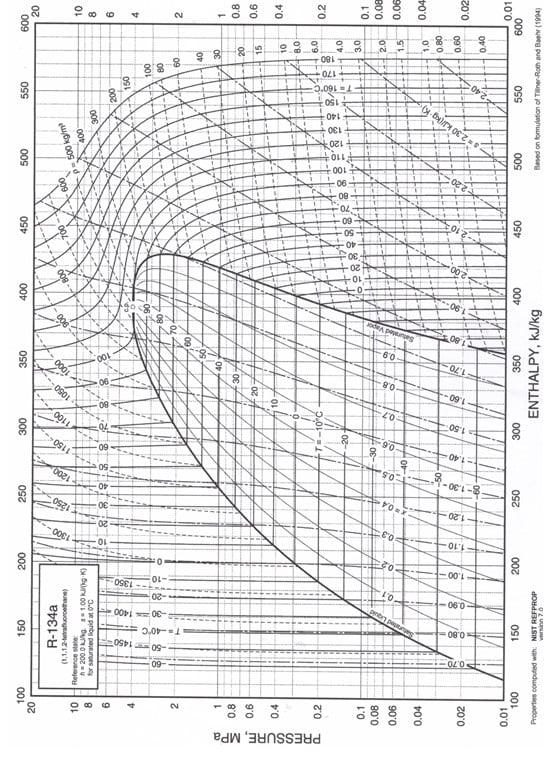

Ref134a A Cascade Refrigeration System Using Flash Tank And Intercooler Is Operating An Evaporator With A Capacity Of 10 1 (106.5 KiB) Viewed 28 times
