A pair of standard height factor of helical gear is to be designed to transmit a current of 45.455A (at Philippine's set

[answerhappygod]

A Pair Of Standard Height Factor Of Helical Gear Is To Be Designed To Transmit A Current Of 45 455a At Philippine S Set 1 (90.01 KiB) Viewed 29 times

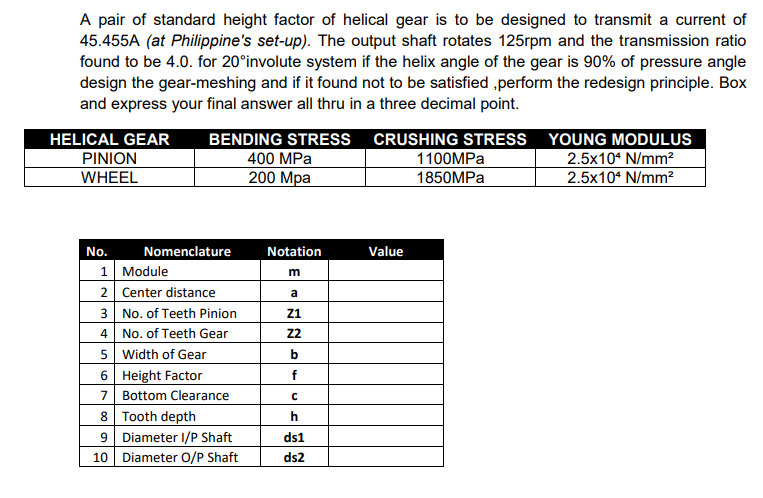

A pair of standard height factor of helical gear is to be designed to transmit a current of 45.455A (at Philippine's set-up). The output shaft rotates 125rpm and the transmission ratio found to be 4.0. for 20°involute system if the helix angle of the gear is 90% of pressure angle design the gear-meshing and if it found not to be satisfied perform the redesign principle. Box and express your final answer all thru in a three decimal point. HELICAL GEAR BENDING STRESS CRUSHING STRESS YOUNG MODULUS PINION 400 MPa 1100MPa 2.5x104 N/mm2 WHEEL 200 Mpa 1850MPa 2.5x104 N/mm² Notation Value m a 21 Z2 No. Nomenclature 1 Module 2 Center distance 3 No. of Teeth Pinion 4 No. of Teeth Gear 5 Width of Gear 6 Height Factor 7 Bottom Clearance 8 Tooth depth 9 Diameter 1/P Shaft 10 Diameter O/P Shaft b f с h ds1 ds2
