Exhaust gasses from a diesel engine are used to heat water in an insulated heat exchanger. Refer to the figure and table

[answerhappygod]

Exhaust Gasses From A Diesel Engine Are Used To Heat Water In An Insulated Heat Exchanger Refer To The Figure And Table 1 (31.51 KiB) Viewed 28 times

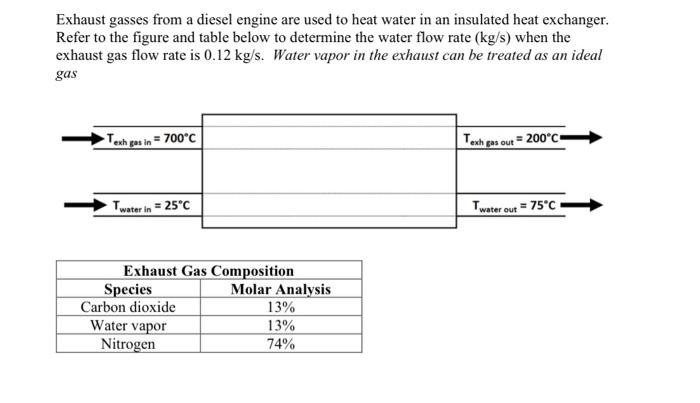

Exhaust gasses from a diesel engine are used to heat water in an insulated heat exchanger. Refer to the figure and table below to determine the water flow rate (kg/s) when the exhaust gas flow rate is 0.12 kg/s. Water vapor in the exhaust can be treated as an ideal gas Texth ges in = 700°C Texh gas out = 200°C Twater in = 25°C Twater out = 75°C Exhaust Gas Composition Species Molar Analysis Carbon dioxide 13% Water vapor 13% Nitrogen 74%
