2. (i) Determine the shear force and bending moment equations. (ii) Draw the shear force and bending moment diagrams. (i

[answerhappygod]

2 I Determine The Shear Force And Bending Moment Equations Ii Draw The Shear Force And Bending Moment Diagrams I 1 (28.43 KiB) Viewed 58 times

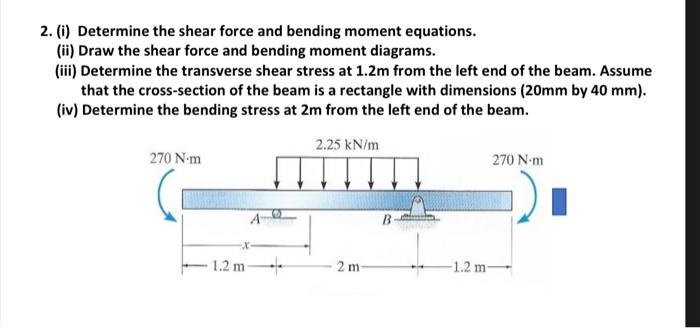

2. (i) Determine the shear force and bending moment equations. (ii) Draw the shear force and bending moment diagrams. (iii) Determine the transverse shear stress at 1.2m from the left end of the beam. Assume that the cross-section of the beam is a rectangle with dimensions (20mm by 40 mm). (iv) Determine the bending stress at 2m from the left end of the beam. 2.25 kN/m 270 Nm 270 Nm 1.2 m -- 2 m 1.2 m
