Course: Instrumentation and Control Systems

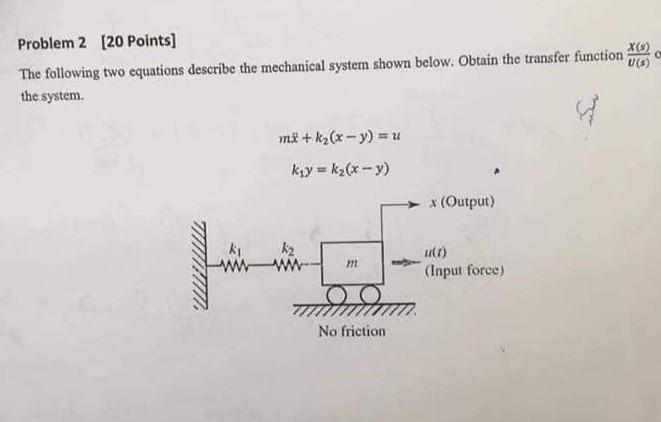

X(s) U(s) The following two equations describe the mechanical system shown below. Obtain the transfer function X(s)/ U(s) of the system.
Course Instrumentation And Control Systems X S U S The Following Two Equations Describe The Mechanical System Shown B 1 (19.4 KiB) Viewed 30 times
X($) U(s) Problem 2 [20 Points) The following two equations describe the mechanical systern shown below. Obtain the transfer function the system. må + k2(x - y) = u kyy = kx(x - y) (Output) ki w ut) m! (Input force) No friction
