A G VA B 1. If end A of the constrained link has a constant downward velocity VA of 200mm/s as the bar passes the positi

Post by answerhappygod »

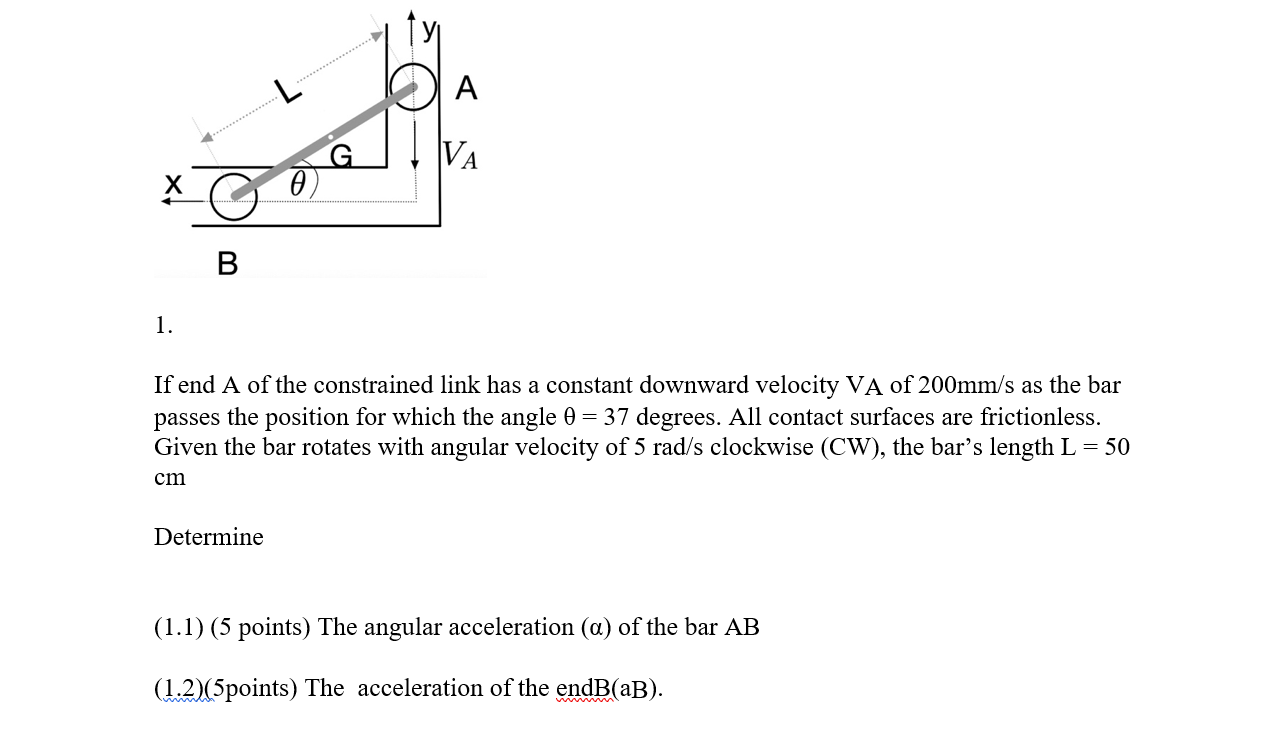

A G Va B 1 If End A Of The Constrained Link Has A Constant Downward Velocity Va Of 200mm S As The Bar Passes The Positi 1
A G Va B 1 If End A Of The Constrained Link Has A Constant Downward Velocity Va Of 200mm S As The Bar Passes The Positi 1 (64.84 KiB) Viewed 49 times
A G VA B 1. If end A of the constrained link has a constant downward velocity VA of 200mm/s as the bar passes the position for which the angle 0 = 37 degrees. All contact surfaces are frictionless. Given the bar rotates with angular velocity of 5 rad/s clockwise (CW), the bar's length L = 50 cm Determine (1.1) (5 points) The angular acceleration (a) of the bar AB (1.22(5points) The acceleration of the endB(aB).
