Explain (in your own words) the meaning of the terms 'failure by yield" and 'failure by fast fracture' relating to metal

[answerhappygod]

Explain In Your Own Words The Meaning Of The Terms Failure By Yield And Failure By Fast Fracture Relating To Metal 1 (366.7 KiB) Viewed 34 times

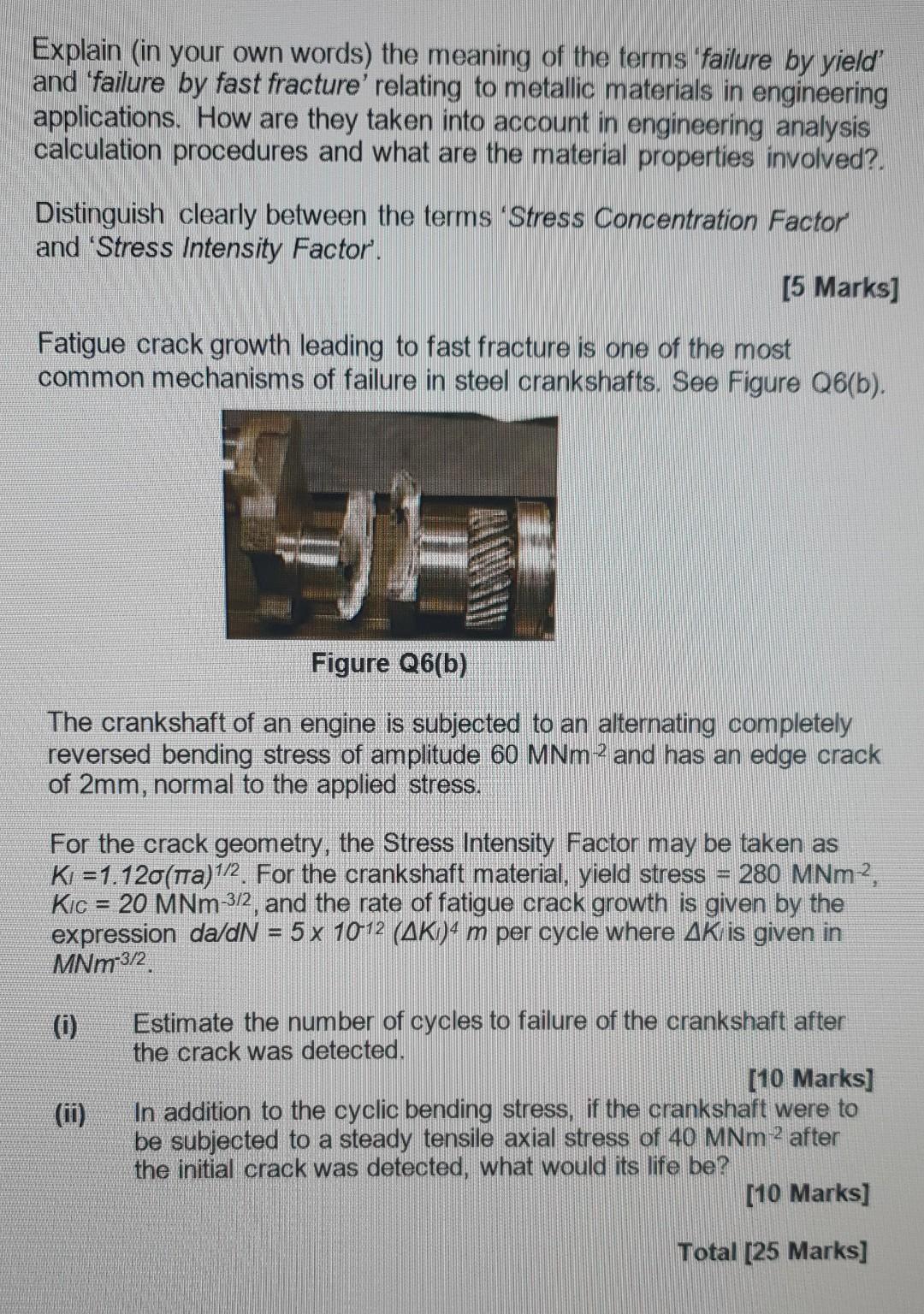

Explain (in your own words) the meaning of the terms 'failure by yield" and 'failure by fast fracture' relating to metallic materials in engineering applications. How are they taken into account in engineering analysis calculation procedures and what are the material properties involved?. Distinguish clearly between the terms 'Stress Concentration Factor and 'Stress Intensity Factor'. [5 Marks] Fatigue crack growth leading to fast fracture is one of the most common mechanisms of failure in steel crankshafts. See Figure 06(b). SET Figure Q6(b) The crankshaft of an engine is subjected to an alternating completely reversed bending stress of amplitude 60 MNm2 and has an edge crack of 2mm, normal to the applied stress. For the crack geometry, the Stress Intensity Factor may be taken as Ki =1.120(tra)1/2. For the crankshaft material, yield stress 280 MNm 2 kic = 20 MNm-312, and the rate of fatigue crack growth is given by the expression da/dN = 5 x 1012 (4K)' m per cycle where AK is given in MNm-3/2 Estimate the number of cycles to failure of the crankshaft after the crack was detected. [10 Marks] In addition to the cyclic bending stress, if the crankshaft were to be subjected to a steady tensile axial stress of 40 MNm-2 after the initial crack was detected, what would its life be? [10 Marks] Total (25 Marks]
