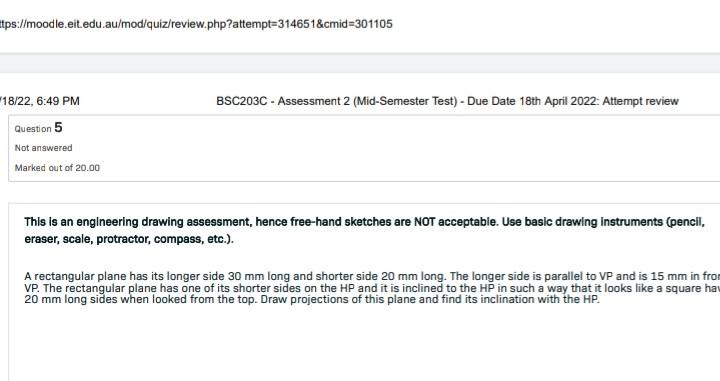

ttps://moodle.eit.edu.au/mod/quiz/review.php?attempt=3146518cmid=301105 BSC203C - Assessment 2 (Mid-Semester Test) - Due Date 18th April 2022: Attempt review 18/22, 6:49 PM Question 5 Not answered Marked out of 20.00 This is an engineering drawing assessment, hence free-hand sketches are NOT acceptable. Use basic drawing Instruments (pencil. eraser, scale, protractor, compass, etc.). A rectangular plane has its longer side 30 mm long and shorter side 20 mm long. The longer side is parallel to VP and is 15 mm in from VP. The rectangular plane has one of its shorter sides on the HP and it is inclined to the HP in such a way that it looks like a square ha 20 mm long sides when looked from the top. Draw projections of this plane and find its inclination with the HP.
