3–83. Replace the two forces acting on the post by a resultant force and couple moment at point O. Express the results i

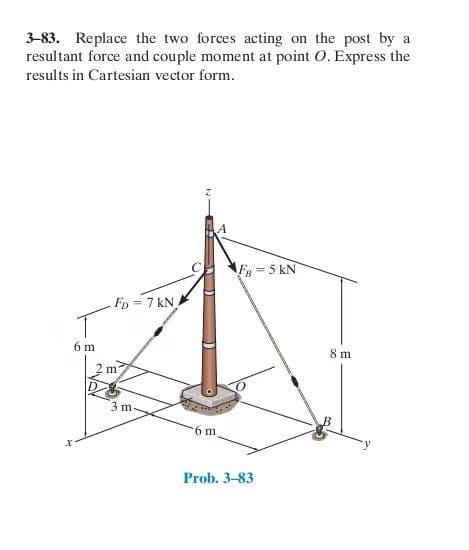

3–83. Replace the two forces acting on the post by a resultant force and couple moment at point O. Express the results in Cartesian vector form. Fg = 5 kN Fp = 7 KN 6 m 8 m m רון 3 om Prob. 3-83
