The simple beam AB shown in the figure has moments 2M, and M, acting at the ends. (Assume the beam has constant flexural

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The simple beam AB shown in the figure has moments 2M, and M, acting at the ends. (Assume the beam has constant flexural

Post by answerhappygod »

The Simple Beam Ab Shown In The Figure Has Moments 2m And M Acting At The Ends Assume The Beam Has Constant Flexural 1
The Simple Beam Ab Shown In The Figure Has Moments 2m And M Acting At The Ends Assume The Beam Has Constant Flexural 1 (25.41 KiB) Viewed 33 times

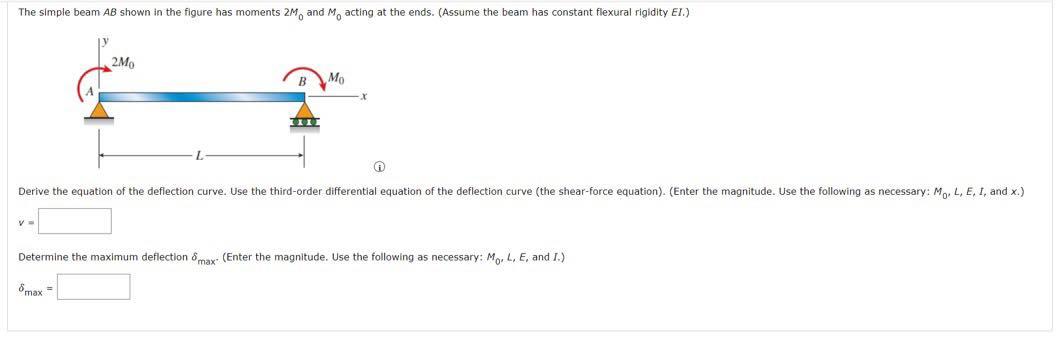

The simple beam AB shown in the figure has moments 2M, and M, acting at the ends. (Assume the beam has constant flexural rigidity EI.) 2M MO Derive the equation of the deflection curve. Use the third-order differential equation of the deflection curve (the shear-force equation). (Enter the magnitude. Use the following as necessary: M, L, E, I, and x.) v Determine the maximum deflection max. (Enter the magnitude. Use the following as necessary: M, L, E, and I.)
