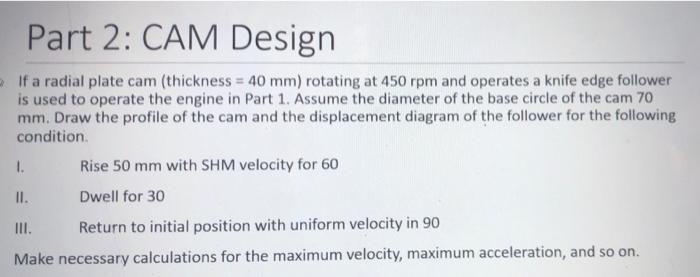

Part 2: CAM Design If a radial plate cam (thickness = 40 mm) rotating at 450 rpm and operates a knife edge follower is used to operate the engine in Part 1. Assume the diameter of the base circle of the cam 70 mm. Draw the profile of the cam and the displacement diagram of the follower for the following condition 1. Rise 50 mm with SHM velocity for 60 II. Dwell for 30 III. Return to initial position with uniform velocity in 90 Make necessary calculations for the maximum velocity, maximum acceleration, and so on.
