** Advanced Diploma. Mechanical Section 17. A rotating shaft of a Pivoted-cradle balancing machine carrios four masses i

[answerhappygod]

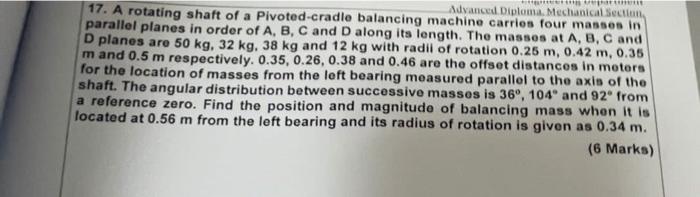

Advanced Diploma Mechanical Section 17 A Rotating Shaft Of A Pivoted Cradle Balancing Machine Carrios Four Masses I 1 (26.86 KiB) Viewed 26 times

** Advanced Diploma. Mechanical Section 17. A rotating shaft of a Pivoted-cradle balancing machine carrios four masses in parallel planes in order of A, B, C and D along its length. The masses at A, B, C and D planes are 50 kg, 32 kg, 38 kg and 12 kg with radil of rotation 0.25 m, 0.42 m, 0.35 m and 0.5 m respectively. 0.35, 0.26, 0.38 and 0.46 are the offset distances in motors for the location of masses from the left bearing measured parallel to the axis of the shaft. The angular distribution between successive masses is 36°, 104° and 92" from a reference zero. Find the position and magnitude of balancing mass when it is located at 0.56 m from the left bearing and its radius of rotation is given as 0.34 m. (6 Marks)
