An isometric view used in a drawing can be: O a. None of the other answers are correct ob. A two dimensional representat

[answerhappygod]

An Isometric View Used In A Drawing Can Be O A None Of The Other Answers Are Correct Ob A Two Dimensional Representat 1 (45.33 KiB) Viewed 24 times

An Isometric View Used In A Drawing Can Be O A None Of The Other Answers Are Correct Ob A Two Dimensional Representat 2 (42.93 KiB) Viewed 24 times

An Isometric View Used In A Drawing Can Be O A None Of The Other Answers Are Correct Ob A Two Dimensional Representat 3 (37.96 KiB) Viewed 24 times

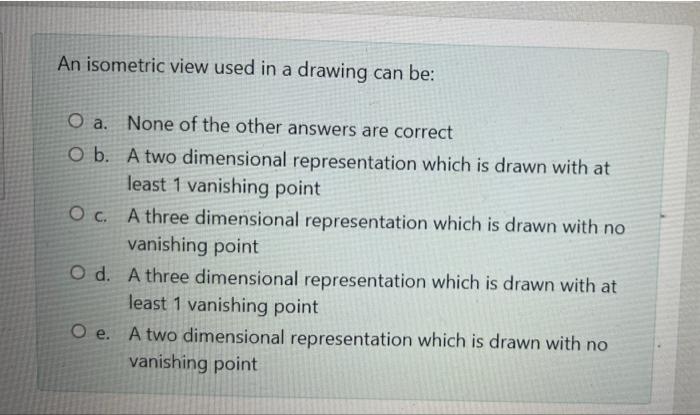

An isometric view used in a drawing can be: O a. None of the other answers are correct ob. A two dimensional representation which is drawn with at least 1 vanishing point O c. A three dimensional representation which is drawn with no vanishing point O d. A three dimensional representation which is drawn with at least 1 vanishing point A two dimensional representation which is drawn with no vanishing point

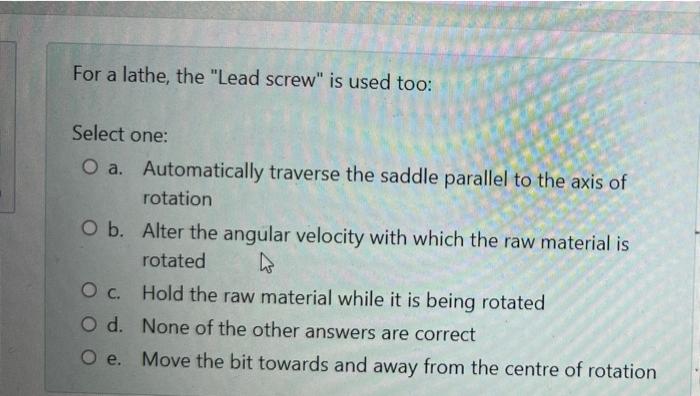

For a lathe, the "Lead screw" is used too: Select one: O a. Automatically traverse the saddle parallel to the axis of rotation O b. Alter the angular velocity with which the raw material is rotated A O c. Hold the raw material while it is being rotated O d. None of the other answers are correct O e. Move the bit towards and away from the centre of rotation

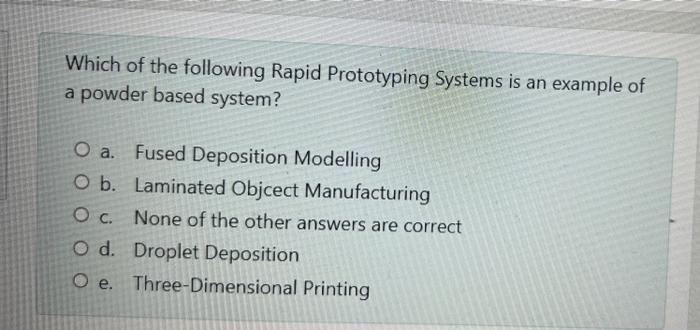

Which of the following Rapid Prototyping Systems is an example of a powder based system? O a. Fused Deposition Modelling O b. Laminated Objcect Manufacturing O c. None of the other answers are correct O d. Droplet Deposition O e. Three-Dimensional Printing
