Engineering of Materials review problem Need help with it
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Engineering of Materials review problem Need help with it
Engineering of Materials review problem
Need help with it

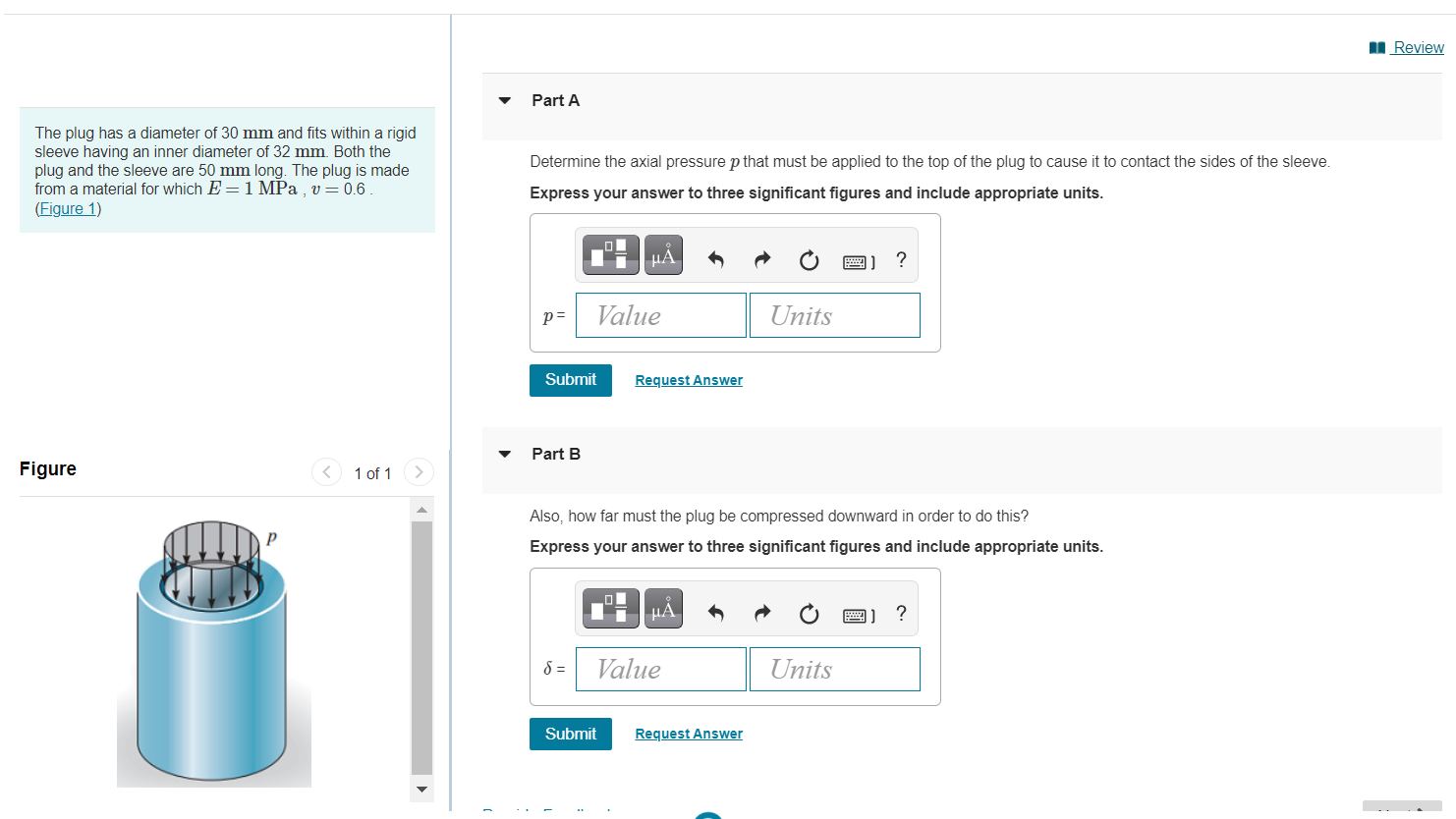

n Review Part A The plug has a diameter of 30 mm and fits within a rigid sleeve having an inner diameter of 32 mm Both the plug and the sleeve are 50 mm long. The plug is made from a material for which E=1 MPa, v=0.6. (Figure 1) Determine the axial pressure p that must be applied to the top of the plug to cause it to contact the sides of the sleeve. Express your answer to three significant figures and include appropriate units. T: MÅ 3? p= Value Units Submit Request Answer Part B Figure < 1 of 1 Also, how far must the plug be compressed downward in order to do this? Express your answer to three significant figures and include appropriate units. μΑ 圖」? 8 = Value Units Submit Request Answer
Need help with it
n Review Part A The plug has a diameter of 30 mm and fits within a rigid sleeve having an inner diameter of 32 mm Both the plug and the sleeve are 50 mm long. The plug is made from a material for which E=1 MPa, v=0.6. (Figure 1) Determine the axial pressure p that must be applied to the top of the plug to cause it to contact the sides of the sleeve. Express your answer to three significant figures and include appropriate units. T: MÅ 3? p= Value Units Submit Request Answer Part B Figure < 1 of 1 Also, how far must the plug be compressed downward in order to do this? Express your answer to three significant figures and include appropriate units. μΑ 圖」? 8 = Value Units Submit Request Answer
