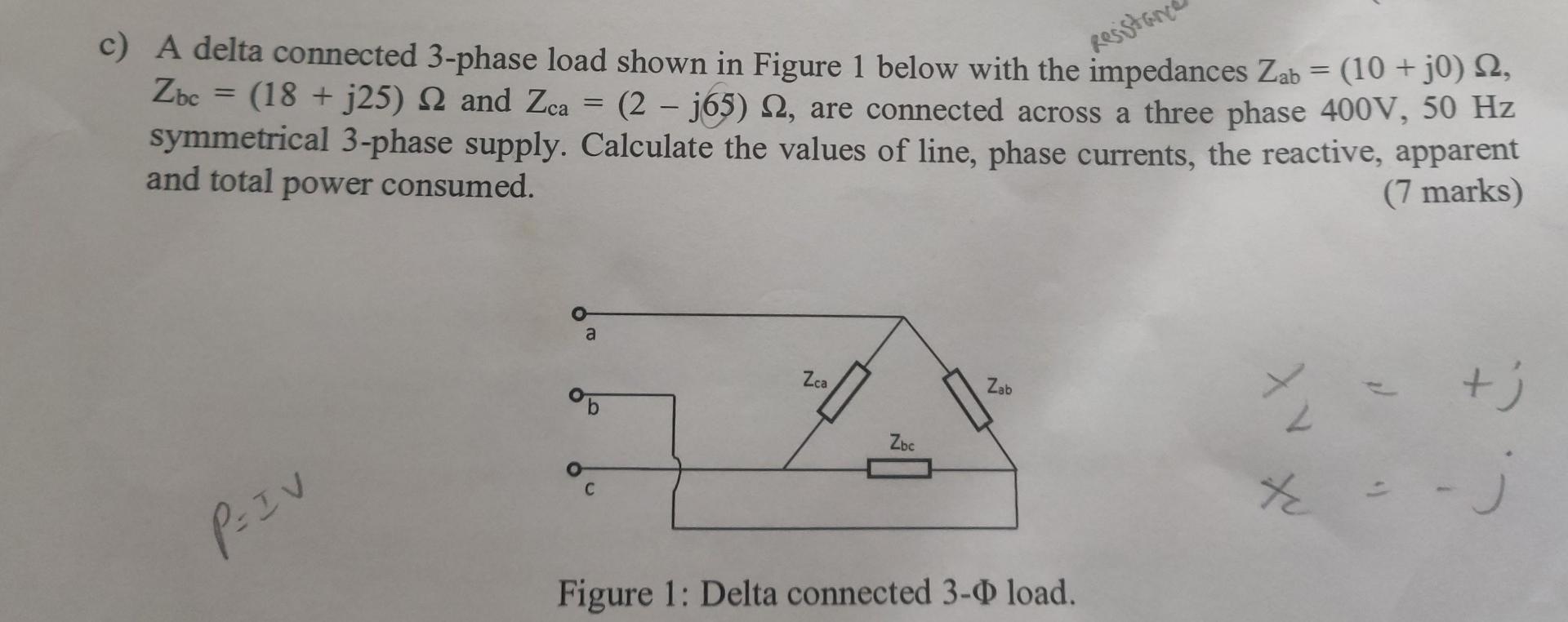

Resistance - c) A delta connected 3-phase load shown in Figure 1 below with the impedances Zab = (10 + j0) 12, Zbc = (18 + j25) 12 and Zca = (2 - j65) 22, are connected across a three phase 400V, 50 Hz symmetrical 3-phase supply. Calculate the values of line, phase currents, the reactive, apparent and total power consumed. (7 marks) a Zca Zab +j 2 Zbc to - P= IV Figure 1: Delta connected 3-0 load.
