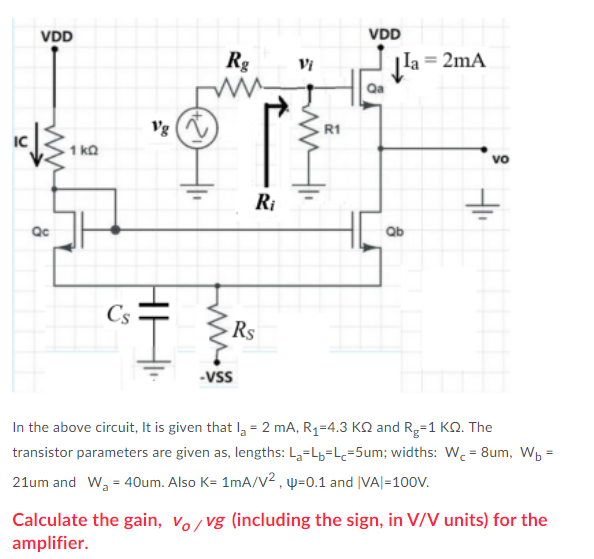

VDD VDD R 1 la = 2mA Qa Vg win R1 1 ΚΩ vo TH Ri Qc Cs HH RS -VSS In the above circuit, It is given that la = 2 mA, R1=4.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
VDD VDD R 1 la = 2mA Qa Vg win R1 1 ΚΩ vo TH Ri Qc Cs HH RS -VSS In the above circuit, It is given that la = 2 mA, R1=4.
VDD VDD R 1 la = 2mA Qa Vg win R1 1 ΚΩ vo TH Ri Qc Cs HH RS -VSS In the above circuit, It is given that la = 2 mA, R1=4.3 K2 and Rg=1 KQ. The transistor parameters are given as, lengths: Lg=L=L=5um; width: W. = 8um, Wp = 21um and W, = 40um. Also K= 1mA/V2, Y=0.1 and VAI=100V. Calculate the gain, ve/vg (including the sign, in V/V units) for the amplifier
