For the bridge rectifier circuit shown in the Figure, assuming practical diodes, the peak value of the output voltage ac

Post by answerhappygod »

For The Bridge Rectifier Circuit Shown In The Figure Assuming Practical Diodes The Peak Value Of The Output Voltage Ac 1
For The Bridge Rectifier Circuit Shown In The Figure Assuming Practical Diodes The Peak Value Of The Output Voltage Ac 1 (34.69 KiB) Viewed 37 times

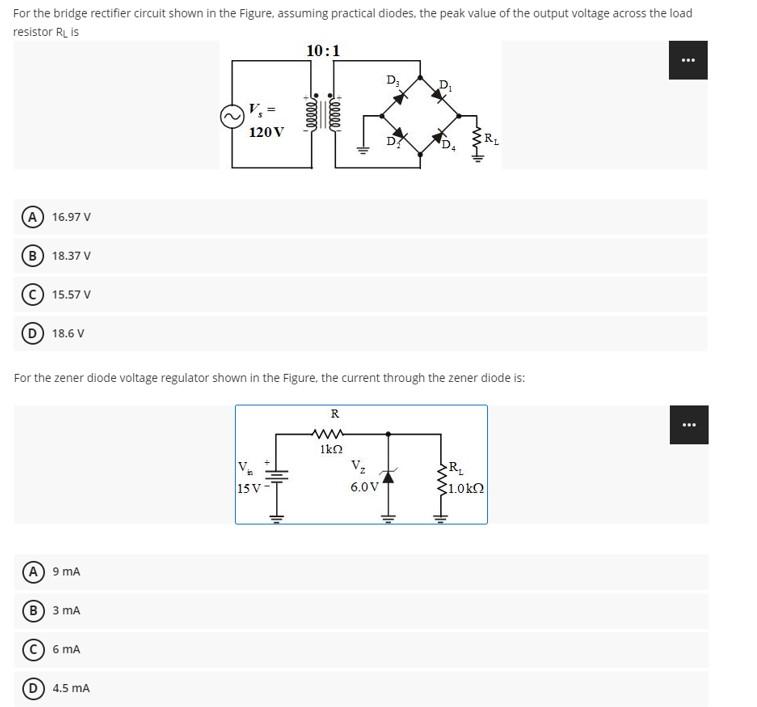

For the bridge rectifier circuit shown in the Figure, assuming practical diodes, the peak value of the output voltage across the load resistor RL is 10:1 ... D P. 120 V 16.97 V B 18.37 v 15.57 v 18.6V For the zener diode voltage regulator shown in the Figure, the current through the zener diode is: R ... w 1kΩ V. w Vz 6.0V 业工 R 31.0ko 15 V 9 mA B 3 mA 6 mA D 4.5 mA
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
