Determine the current passing through each component in Figure Q4 using Mesh Analysis. Write your answer in polar form.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Determine the current passing through each component in Figure Q4 using Mesh Analysis. Write your answer in polar form.

Post by answerhappygod »

Determine The Current Passing Through Each Component In Figure Q4 Using Mesh Analysis Write Your Answer In Polar Form 1
Determine The Current Passing Through Each Component In Figure Q4 Using Mesh Analysis Write Your Answer In Polar Form 1 (56.42 KiB) Viewed 37 times

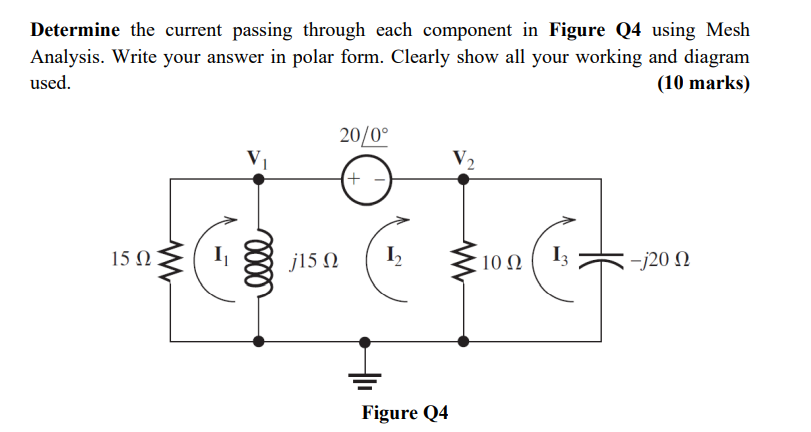

Determine the current passing through each component in Figure Q4 using Mesh Analysis. Write your answer in polar form. Clearly show all your working and diagram used. (10 marks) 20/0° + 1512 W 1 0000 j15 Ω 12 W 10.12 دیا -j20 Ω Figure Q4
