QUESTION 1 Calculate and plot the percent bandwidth for a N = 1-section binomial matching transformer versus 24/2. = 1.5

[answerhappygod]

Question 1 Calculate And Plot The Percent Bandwidth For A N 1 Section Binomial Matching Transformer Versus 24 2 1 5 1 (106.31 KiB) Viewed 79 times

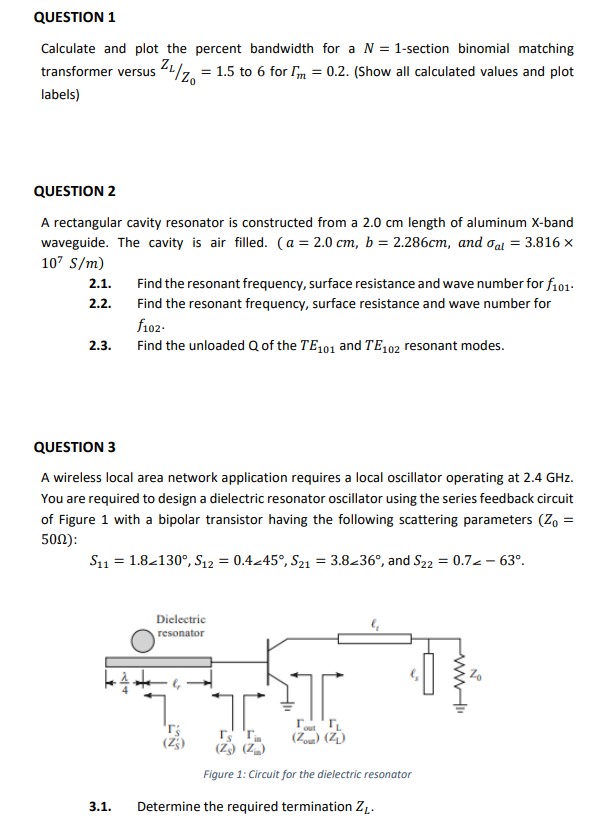

QUESTION 1 Calculate and plot the percent bandwidth for a N = 1-section binomial matching transformer versus 24/2. = 1.5 to 6 for Im = 0.2. (Show all calculated values and plot labels) QUESTION 2 A rectangular cavity resonator is constructed from a 2.0 cm length of aluminum X-band waveguide. The cavity is air filled. (a = 2.0 cm, b = 2.286cm, and oal = 3.816 x 107 S/m) 2.1. Find the resonant frequency, surface resistance and wave number for f101. Find the resonant frequency, surface resistance and wave number for f102 2.3. Find the unloaded Q of the TE 101 and TE102 resonant modes. 2.2. QUESTION 3 A wireless local area network application requires a local oscillator operating at 2.4 GHz. You are required to design a dielectric resonator oscillator using the series feedback circuit of Figure 1 with a bipolar transistor having the following scattering parameters (20 = 501): S11 = 1.82130°, S12 = 0.4245°, S21 = 3.8236°, and S22 = 0.72-63º. Dielectric resonator w HT 1 Γ, Γ. го ги (zu) (2 Figure 1: Circuit for the dielectric resonator Determine the required termination 2 3.1.
