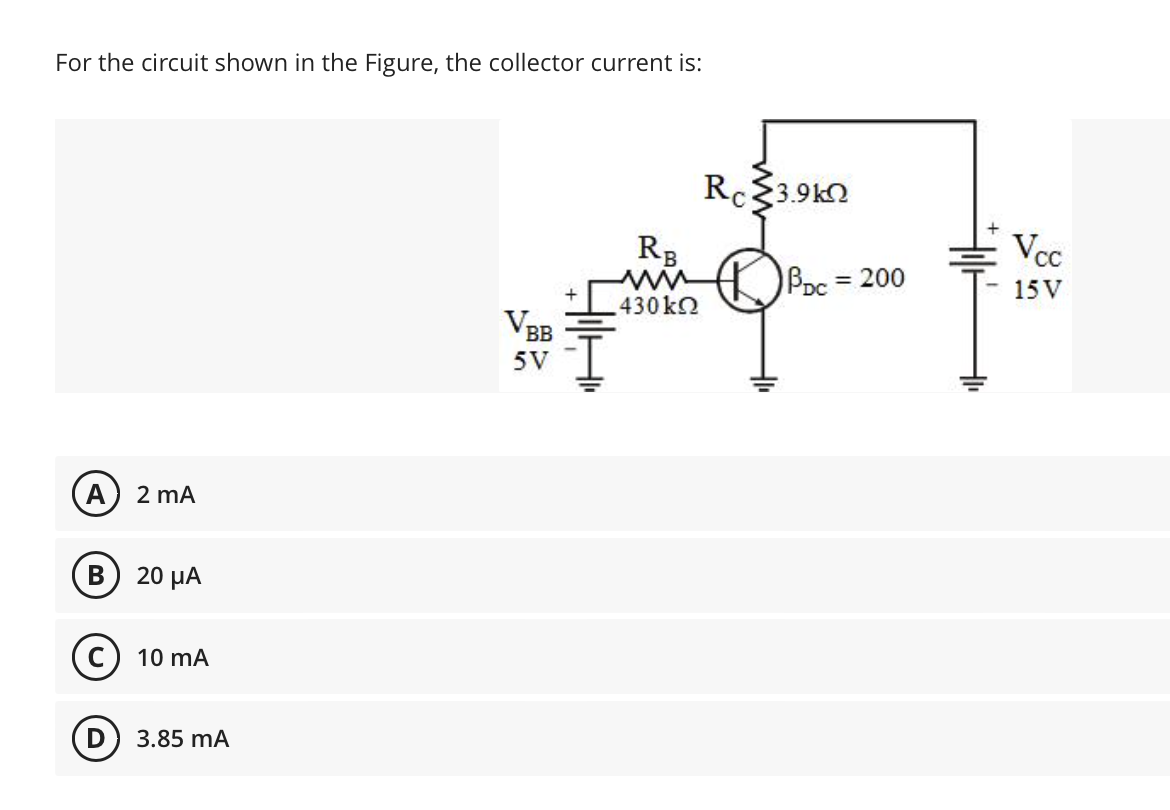

For the circuit shown in the Figure, the collector current is: RC33.9k12 RE VCC 15V wa 430 kΩ Boc = 200 VBB 5V A 2 mA B

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown in the Figure, the collector current is: RC33.9k12 RE VCC 15V wa 430 kΩ Boc = 200 VBB 5V A 2 mA B

Post by answerhappygod »

1
1 (122.69 KiB) Viewed 35 times
For the circuit shown in the Figure, the collector current is: RC33.9k12 RE VCC 15V wa 430 kΩ Boc = 200 VBB 5V A 2 mA B 20 μΑ C 10 mA D 3.85 mA
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
