For the circuit shown in the Figure, the load line will intersect the IC axis at: Voc -18V 132 20 ww Pec - 200 R 10202 R

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown in the Figure, the load line will intersect the IC axis at: Voc -18V 132 20 ww Pec - 200 R 10202 R

Post by answerhappygod »

For The Circuit Shown In The Figure The Load Line Will Intersect The Ic Axis At Voc 18v 132 20 Ww Pec 200 R 10202 R 1
For The Circuit Shown In The Figure The Load Line Will Intersect The Ic Axis At Voc 18v 132 20 Ww Pec 200 R 10202 R 1 (23.98 KiB) Viewed 35 times

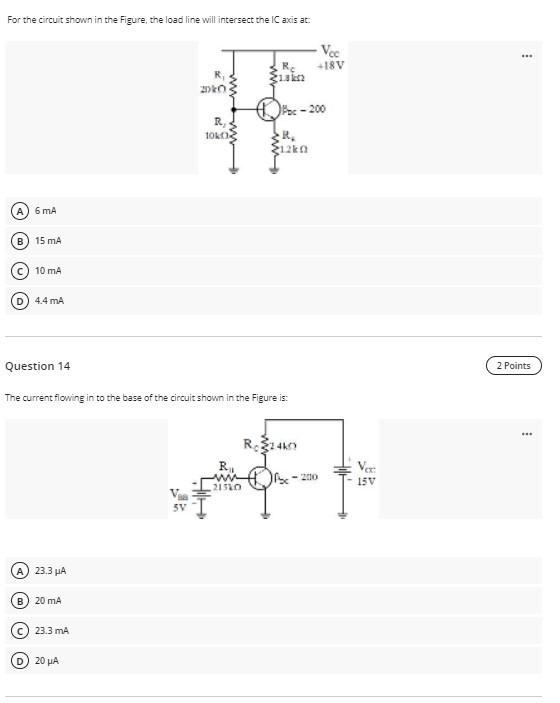

For the circuit shown in the Figure, the load line will intersect the IC axis at: Voc -18V 132 20 ww Pec - 200 R 10202 R. 12k A) 6 mA B) 15 mA 10 mA D 4.4 mA Question 14 2 Points The current flowing in to the base of the circuit shown in the Figure is R N 21510 R3:40 -200 15V SV 23.3 A B) 20 mA 23.3 mA D) 20A
