Question 9 Assuming ideal diode the voltage across the resistor R2 in the circuit shown in the Figure is: R E = +12V o 2

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 9 Assuming ideal diode the voltage across the resistor R2 in the circuit shown in the Figure is: R E = +12V o 2

Post by answerhappygod »

Question 9 Assuming Ideal Diode The Voltage Across The Resistor R2 In The Circuit Shown In The Figure Is R E 12v O 2 1
Question 9 Assuming Ideal Diode The Voltage Across The Resistor R2 In The Circuit Shown In The Figure Is R E 12v O 2 1 (100.28 KiB) Viewed 33 times

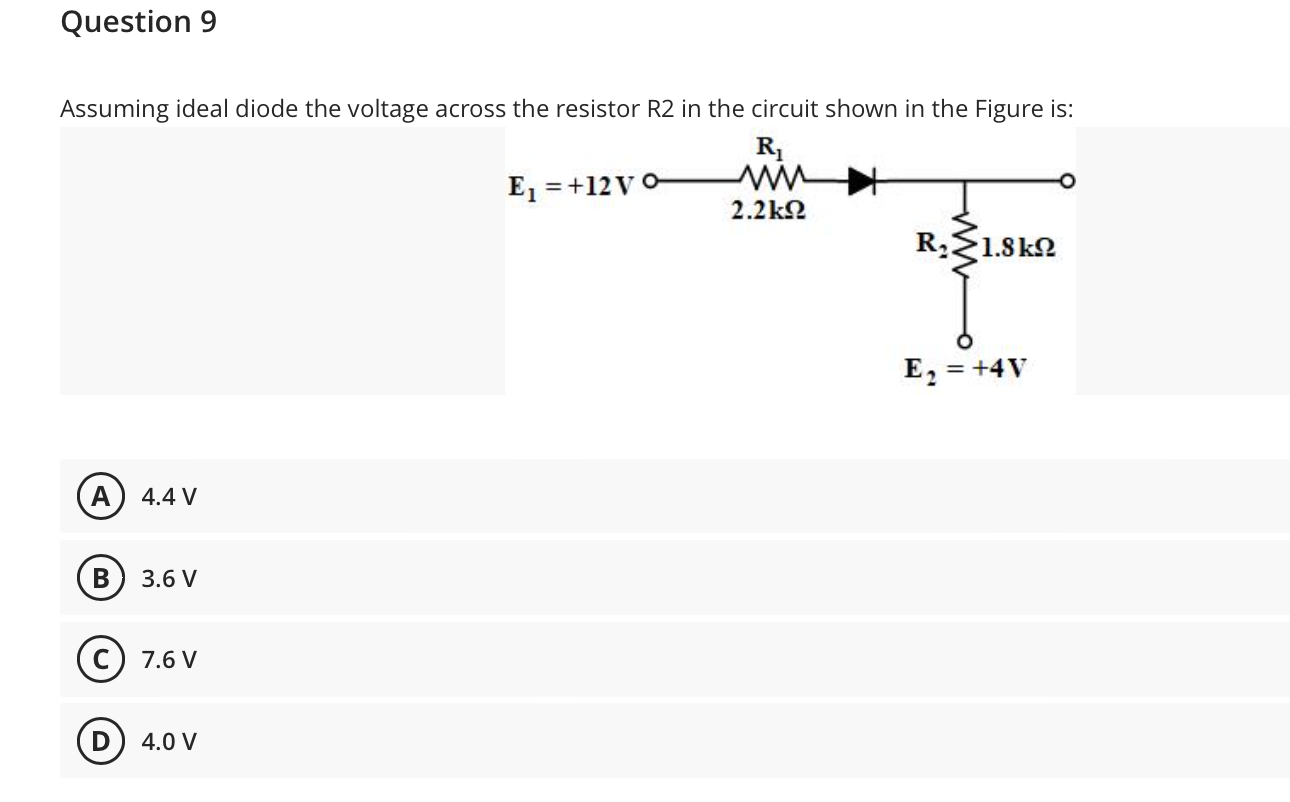

Question 9 Assuming ideal diode the voltage across the resistor R2 in the circuit shown in the Figure is: R E = +12V o 2.2k22 R>1.8k92 = E2 = +4V A 4.4 V B 3.6 V C) 7.6 V 4.0 V
