Question 11 2 Poin For the zener diode voltage regulator shown in the Figure, the current through the zener diode is: R

Post by answerhappygod »

Question 11 2 Poin For The Zener Diode Voltage Regulator Shown In The Figure The Current Through The Zener Diode Is R 1
Question 11 2 Poin For The Zener Diode Voltage Regulator Shown In The Figure The Current Through The Zener Diode Is R 1 (269.68 KiB) Viewed 39 times

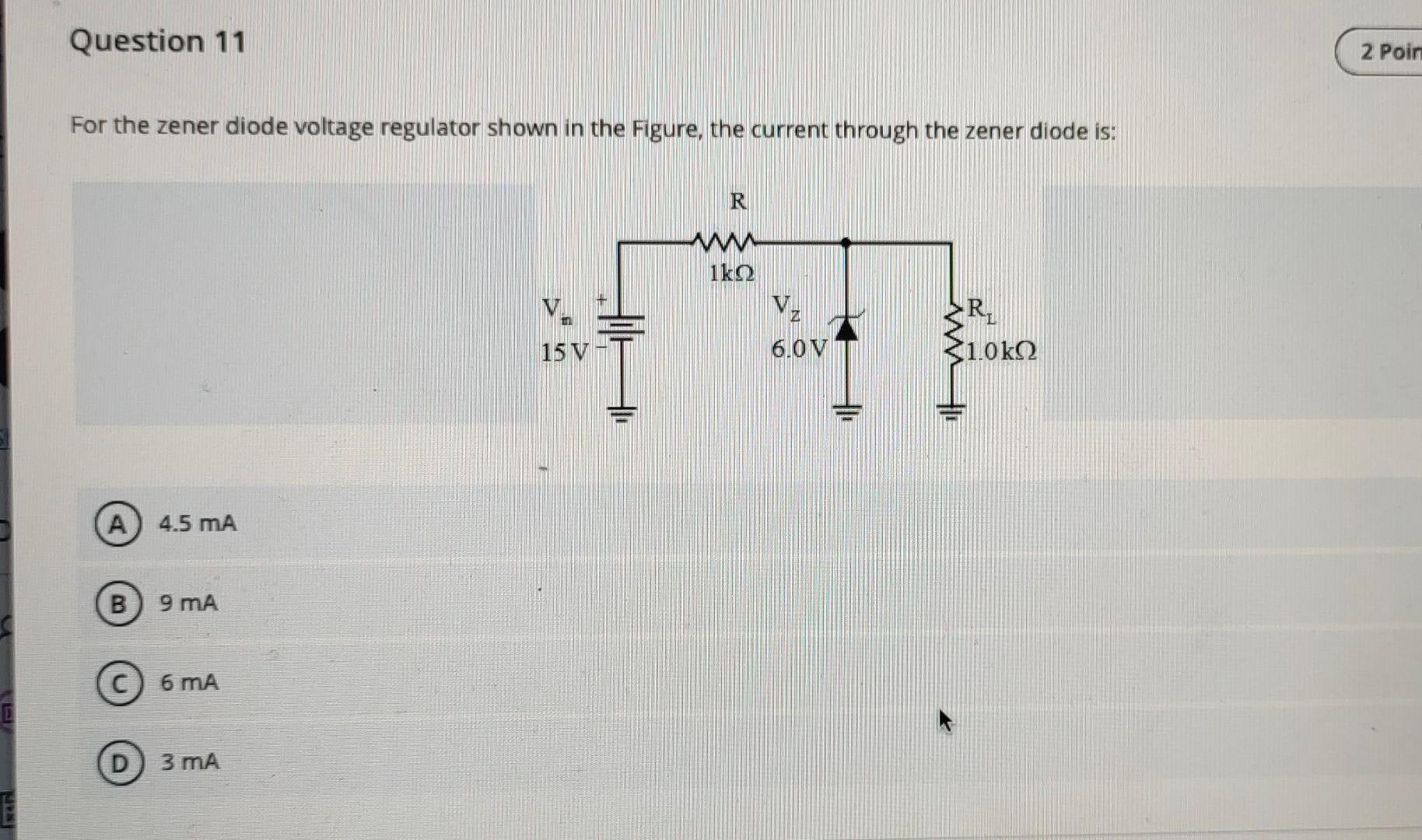

Question 11 2 Poin For the zener diode voltage regulator shown in the Figure, the current through the zener diode is: R - 1kΩ Vz 6.0 V >R, {ioko 15 V А 4.5 mA B) 9 mA C) 6 mA D) 3 mA
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
