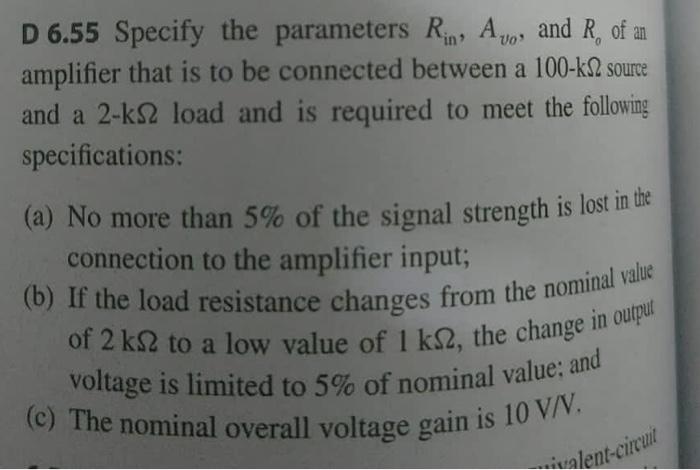

D 6.55 Specify the parameters Rin, Ayo, and R, of an amplifier that is to be connected between a 100-kS2 source and a 2-

[answerhappygod]

D 6 55 Specify The Parameters Rin Ayo And R Of An Amplifier That Is To Be Connected Between A 100 Ks2 Source And A 2 1 (35.85 KiB) Viewed 32 times

D 6.55 Specify the parameters Rin, Ayo, and R, of an amplifier that is to be connected between a 100-kS2 source and a 2-k2 load and is required to meet the following specifications: (a) No more than 5% of the signal strength is lost in the connection to the amplifier input; (b) If the load resistance changes from the nominal value of 2 ks2 to a low value of 1 ks2, the change in output voltage is limited to 5% of nominal value; and (c) The nominal overall voltage gain is 10 V/V. valent-circuit
