Question 5 (25 marks) A sequential circuit has two flip-flops A and B, one input X, and one output Y. The state diagram

[answerhappygod]

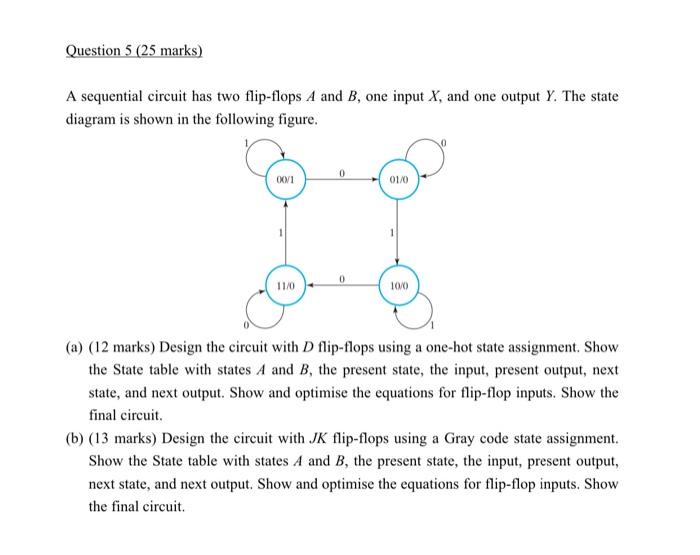

Question 5 25 Marks A Sequential Circuit Has Two Flip Flops A And B One Input X And One Output Y The State Diagram 1 (39.45 KiB) Viewed 40 times

Question 5 (25 marks) A sequential circuit has two flip-flops A and B, one input X, and one output Y. The state diagram is shown in the following figure. 011 01/0 11/0 10/0 (a) (12 marks) Design the circuit with D flip-flops using a one-hot state assignment Show the State table with states A and B, the present state, the input, present output, next state, and next output. Show and optimise the equations for flip-flop inputs. Show the final circuit (b) (13 marks) Design the circuit with JK flip-flops using a Gray code state assignment. Show the State table with states A and B, the present state, the input, present output, next state, and next output. Show and optimise the equations for flip-flop inputs. Show the final circuit.
