stion 2 (40 points) are given an ideal buck converter. You measure the input voltage to be 60 V from a 90W s have an out

Post by answerhappygod »

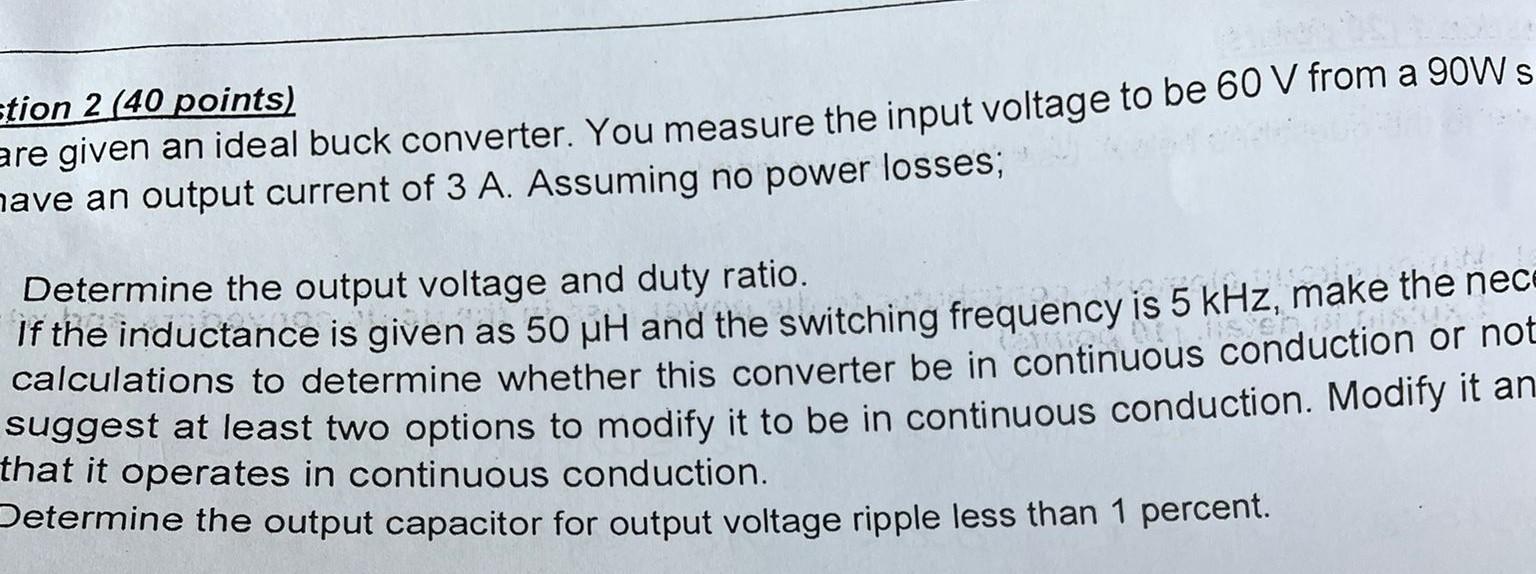

Stion 2 40 Points Are Given An Ideal Buck Converter You Measure The Input Voltage To Be 60 V From A 90w S Have An Out 1
Stion 2 40 Points Are Given An Ideal Buck Converter You Measure The Input Voltage To Be 60 V From A 90w S Have An Out 1 (129.57 KiB) Viewed 33 times
stion 2 (40 points) are given an ideal buck converter. You measure the input voltage to be 60 V from a 90W s have an output current of 3 A. Assuming no power losses; Determine the output voltage and duty ratio. If the inductance is given as 50 pH and the switching frequency is 5 kHz, make the nec uH 5 calculations to determine whether this converter be in continuous conduction or not suggest at least two options to modify it to be in continuous conduction. Modify it an that it operates in continuous conduction. Determine the output capacitor for output voltage ripple less than 1 percent.
