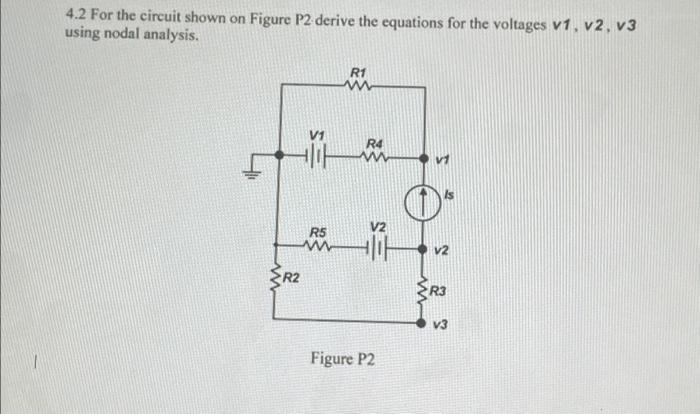

4.2 For the circuit shown on Figure P2 derive the equations for the voltages V1, V2, V3 using nodal analysis. R1 w R4 R5
