Consider the circuit below, the following KVL equations are correct: 15 V 1k C2 w CH w Зk + Vs RG 1 M 3k ثلا 15 V OKVL1:

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the circuit below, the following KVL equations are correct: 15 V 1k C2 w CH w Зk + Vs RG 1 M 3k ثلا 15 V OKVL1:

Post by answerhappygod »

1
1 (56.17 KiB) Viewed 32 times

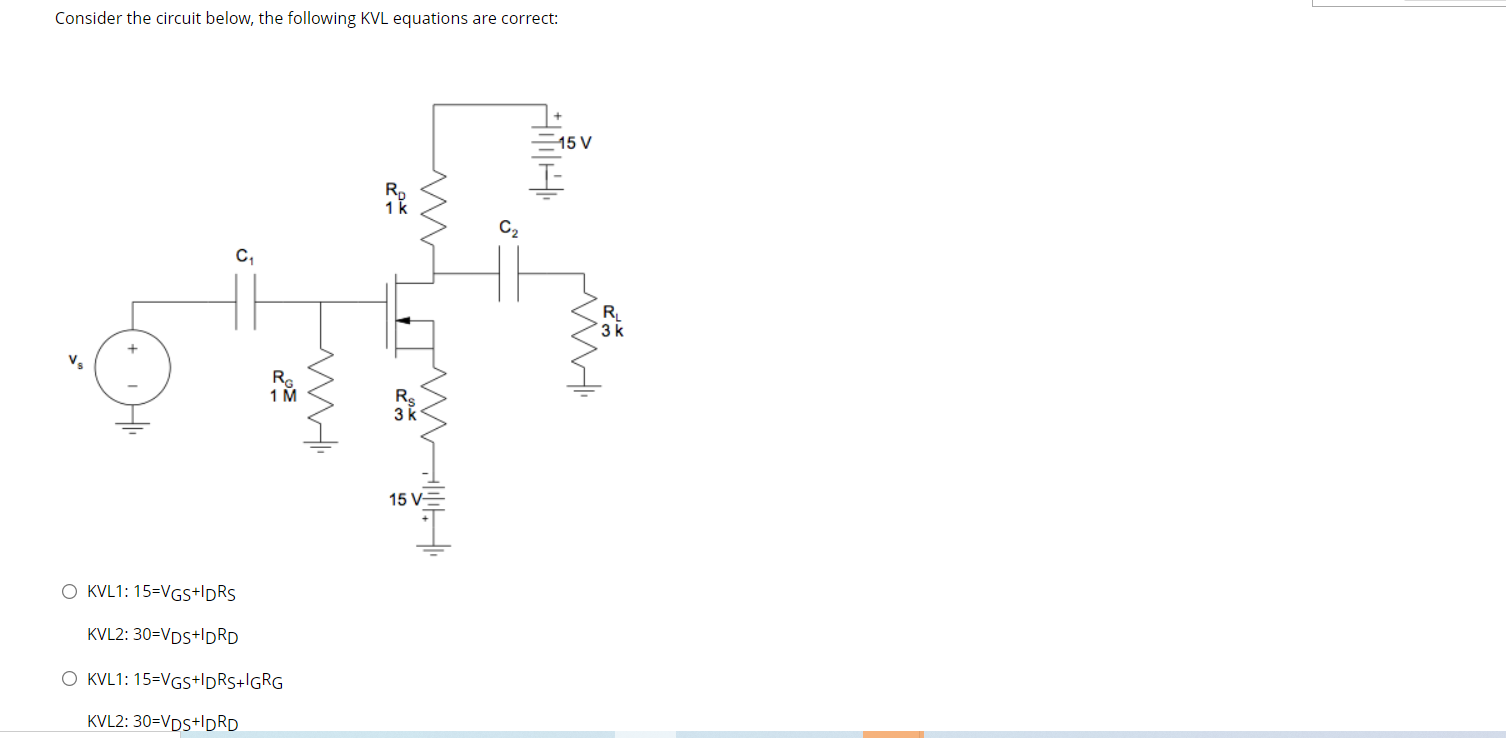

Consider the circuit below, the following KVL equations are correct: 15 V 1k C2 w CH w Зk + Vs RG 1 M 3k ثلا 15 V OKVL1: 15=VGS+IDRS KVL2: 30=VDS+IDRD O KVL1: 15=VGS+IDRS+GRG KVL2: 30=VDs+IDRD
