Subject Course: Electronics Circuit Analysis and Design

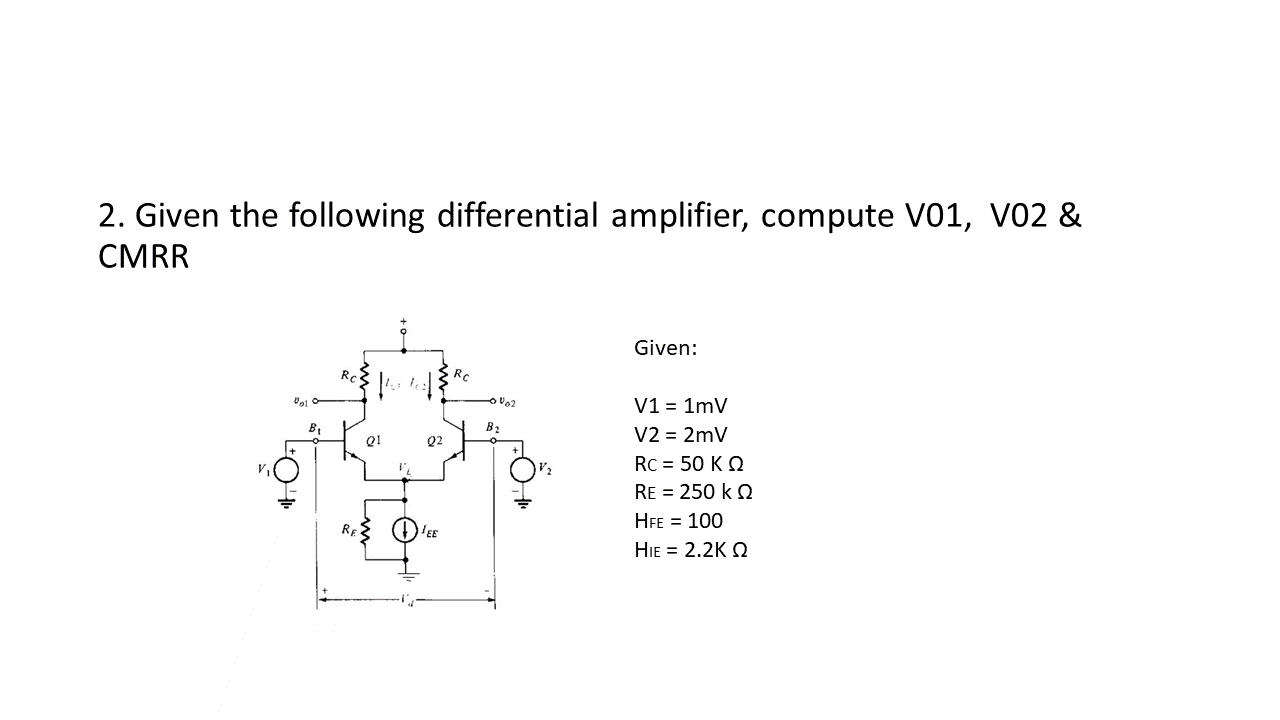

2. Given the following differential amplifier, compute V01, VO2 & CMRR Given: Vol Vo2 B2 01 Q2 tot V1 = 1mV V2 = 2mV RC = 50 K 12 RE = 250 k 2 HFe = 100 Hie = 2.2K 12 thout

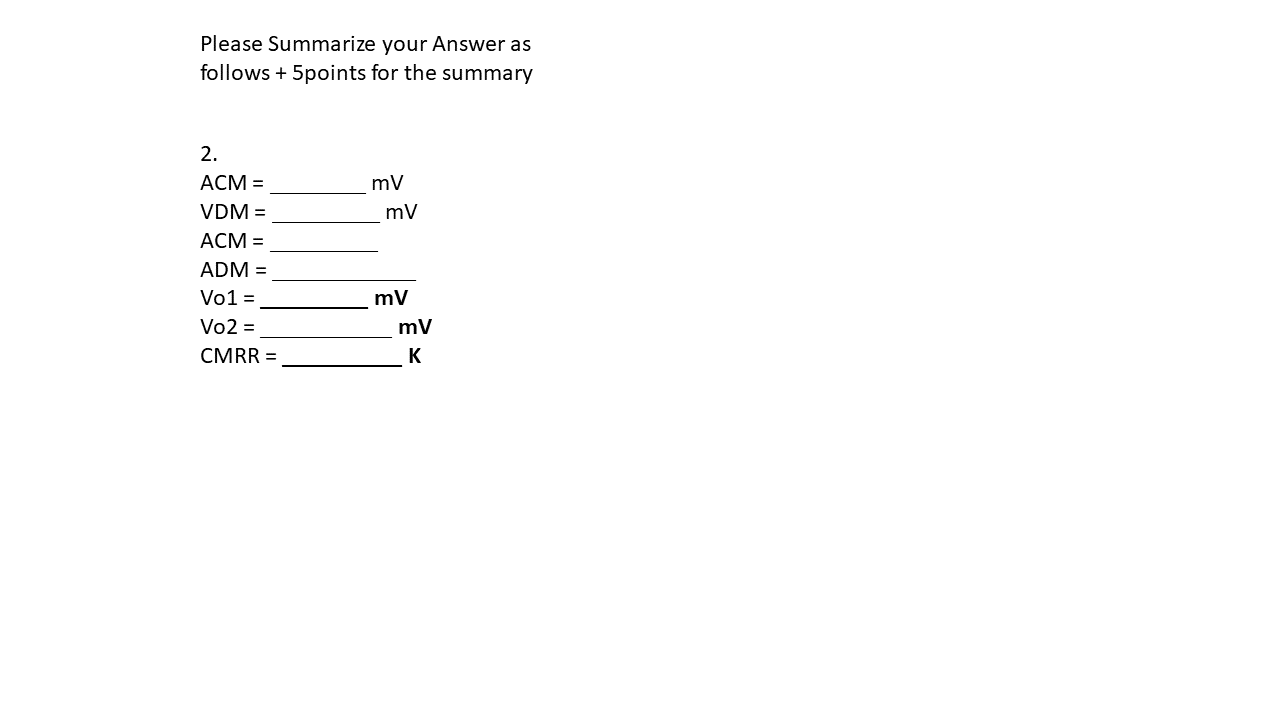

Please Summarize your Answer as follows + 5points for the summary mV mV 2. ACM = VDM = ACM = ADM = Vo1 = Vo2 = CMRR = my mV K
