3. =50 ΚΩ Rc Rc Volo VO2 GIVEN: GM = 10 m mho A sinusoidal having a 5 m vrms amplitude is applied to Q1 & 3 m vrms signa

Post by answerhappygod »

1
1 (33.24 KiB) Viewed 26 times
Subject Course: Electronics Circuit Analysis and Design

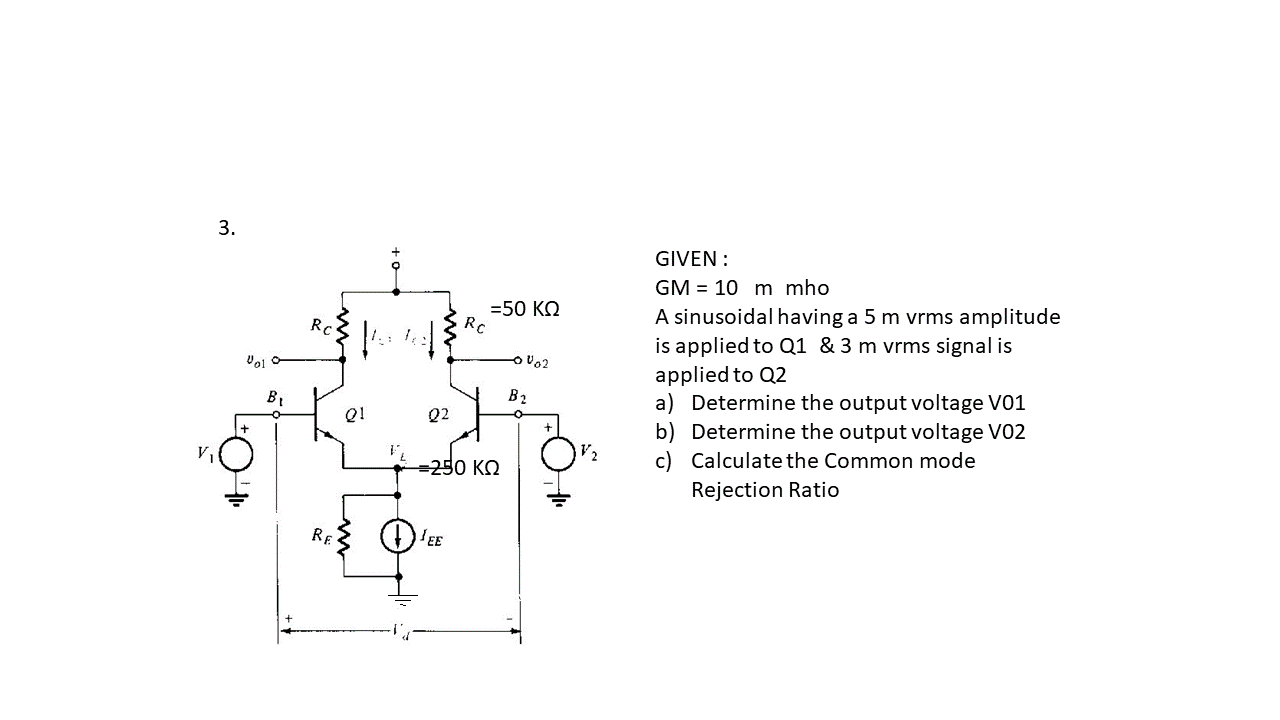

3. =50 ΚΩ Rc Rc Volo VO2 GIVEN: GM = 10 m mho A sinusoidal having a 5 m vrms amplitude is applied to Q1 & 3 m vrms signal is applied to Q2 a) Determine the output voltage 101 b) Determine the output voltage VO2 c) Calculate the common mode Rejection Ratio B B2 01 22 V on =250 ΚΩ RE LEE
