A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line betwe

Post by answerhappygod »

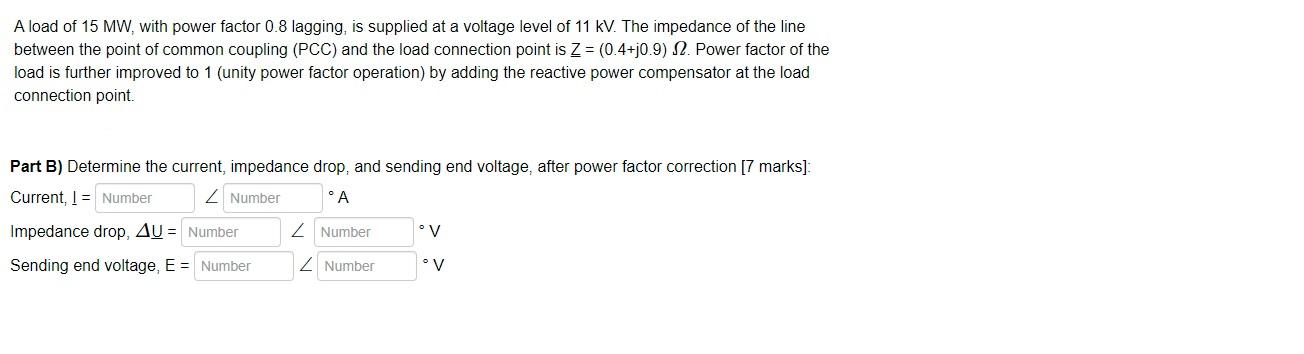

A Load Of 15 Mw With Power Factor 0 8 Lagging Is Supplied At A Voltage Level Of 11 Kv The Impedance Of The Line Betwe 1
A Load Of 15 Mw With Power Factor 0 8 Lagging Is Supplied At A Voltage Level Of 11 Kv The Impedance Of The Line Betwe 1 (43.96 KiB) Viewed 41 times
A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line between the point of common coupling (PCC) and the load connection point is Z = (0.4+j0.9) 12. Power factor of the load is further improved to 1 (unity power factor operation) by adding the reactive power compensator at the load connection point. Part B) Determine the current, impedance drop, and sending end voltage, after power factor correction [7 marks]: Current, I = Number Z Number A Impedance drop, AU = Number Z Number ov Sending end voltage, E = Number Z Number •V
