& Figure Q8 shows a common collector amplifier. The circuit and transistor parameters are lo- 2.5 mA, ks - 030-0.7 V, 8

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

& Figure Q8 shows a common collector amplifier. The circuit and transistor parameters are lo- 2.5 mA, ks - 030-0.7 V, 8

Post by answerhappygod »

Figure Q8 Shows A Common Collector Amplifier The Circuit And Transistor Parameters Are Lo 2 5 Ma Ks 030 0 7 V 8 1
Figure Q8 Shows A Common Collector Amplifier The Circuit And Transistor Parameters Are Lo 2 5 Ma Ks 030 0 7 V 8 1 (32.03 KiB) Viewed 31 times

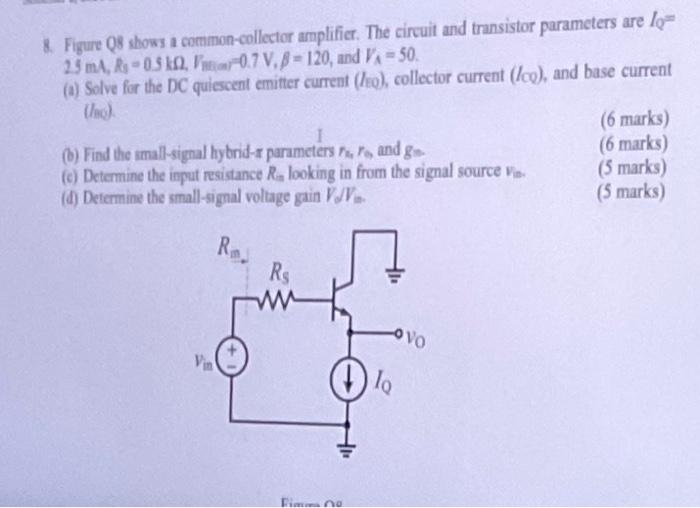

& Figure Q8 shows a common collector amplifier. The circuit and transistor parameters are lo- 2.5 mA, ks - 030-0.7 V, 8 = 120, and V = 50. () Solve for the DC quiescent emitter current (leo), collector current (loo), and base current (họ). (6 marks) (b) Find the small-signal hybrid-e parameters and g. (6 marks) (e) Determine the input resistance Relooking in from the signal source v.. (3 marks) (d) Determine the small-signal voltage gain V/V.. (5 marks) Raj Rs w OVO Vin lo Fi no
