A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line betwe

Post by answerhappygod »

A Load Of 15 Mw With Power Factor 0 8 Lagging Is Supplied At A Voltage Level Of 11 Kv The Impedance Of The Line Betwe 1
A Load Of 15 Mw With Power Factor 0 8 Lagging Is Supplied At A Voltage Level Of 11 Kv The Impedance Of The Line Betwe 1 (44.36 KiB) Viewed 34 times

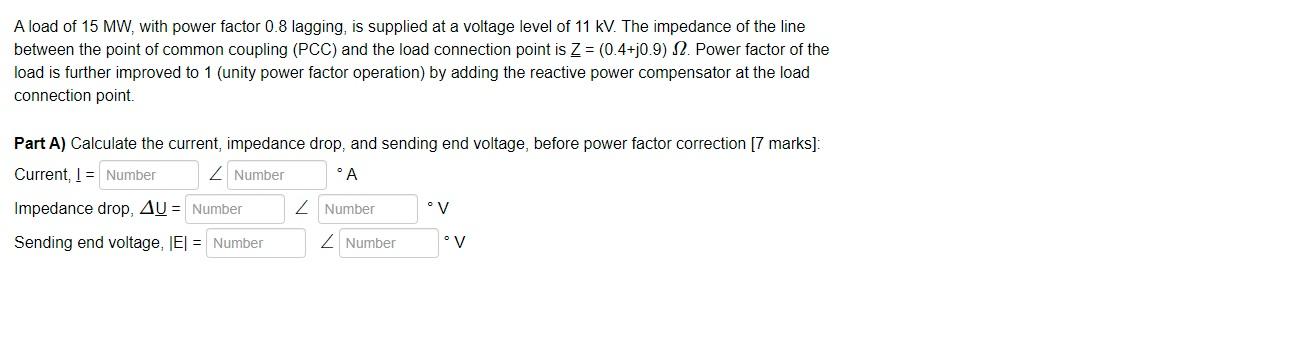

A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line between the point of common coupling (PCC) and the load connection point is Z = (0.4+j0.9) 12. Power factor of the load is further improved to 1 (unity power factor operation) by adding the reactive power compensator at the load connection point. Part A) Calculate the current, impedance drop, and sending end voltage, before power factor correction [7 marks) Current, I = Number Number A Impedance drop, AU = Number Z Number • V Sending end voltage, El = Number Number °V
