2. (a) Express Ra as a function of Rx and Av=Xout/Vin so that and (b) are equivalent at each port. la la Rx Ib + port 1

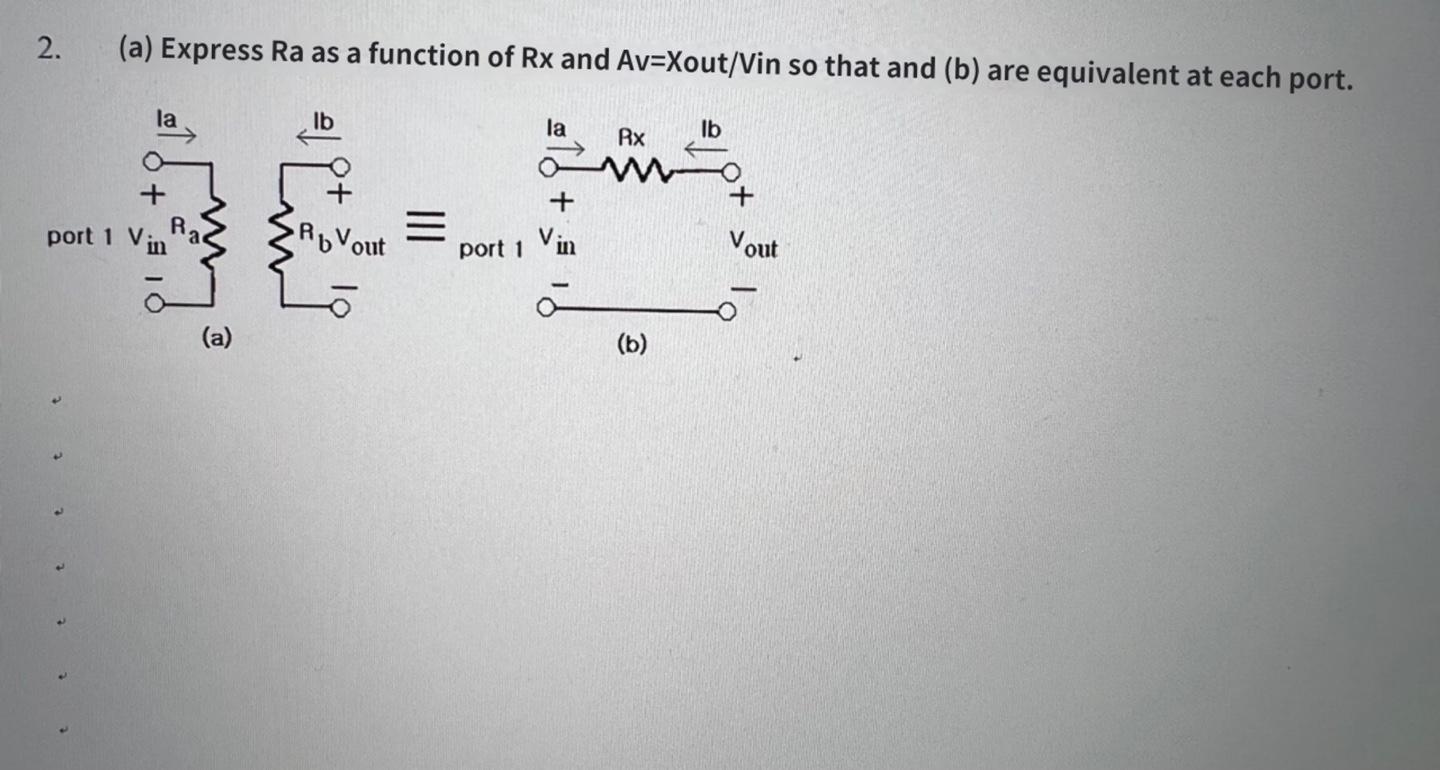

2. (a) Express Ra as a function of Rx and Av=Xout/Vin so that and (b) are equivalent at each port. la la Rx Ib + port 1 Vin • Rb Vout port 1 Vin Vout (a) (b)
