Consider the circuit below and answer the following questions. UL W 0000 Vs Is RO The sources are defined as follows, so

Post by answerhappygod »

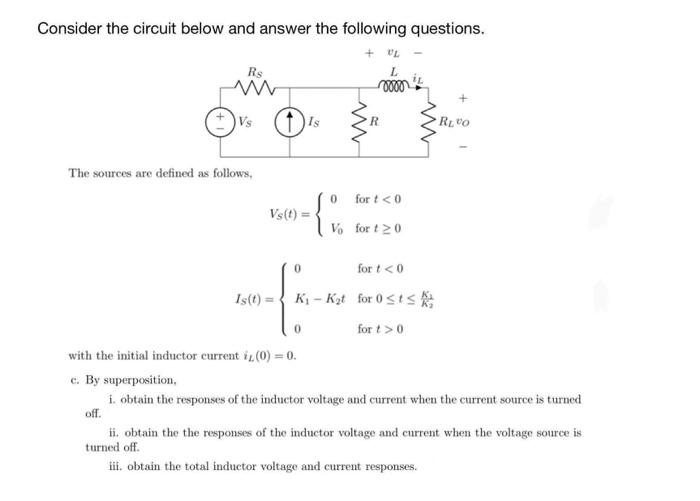

Consider The Circuit Below And Answer The Following Questions Ul W 0000 Vs Is Ro The Sources Are Defined As Follows So 1
Consider The Circuit Below And Answer The Following Questions Ul W 0000 Vs Is Ro The Sources Are Defined As Follows So 1 (25.3 KiB) Viewed 32 times
Consider the circuit below and answer the following questions. UL W 0000 Vs Is RO The sources are defined as follows, sofort < 0 Vs(t) { Vo for to 0 0 for <0 Is(t) = {Ki - Kut for Osts fort > 0 with the initial inductor current i (0) = 0. c. By superposition, 1. obtain the responses of the inductor voltage and current when the current source is turned ofl. ii. obtain the the responses of the inductor voltage and current when the voltage source is turned off fil. obtain the total inductor voltage and current responses
