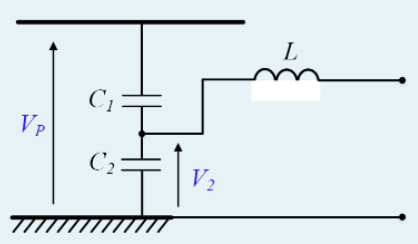

The line voltage of the network is 400 kV and 50Hz, CVT is
designed to have an inter-stage
voltage V2 = 19 kV, and it
is known that the capacitance C1 is
2.526 nF. What are the values
of C2 and tuning
inductance L?
The Line Voltage Of The Network Is 400 Kv And 50hz Cvt Is Designed To Have An Inter Stage Voltage V2 19 Kv And It Is 1 (13.68 KiB) Viewed 35 times
L CE VP C2E TI V2 77
