Q1 a For a TCSC circuit, L= 5 mH, firing angle is 45°, f= 50 Hz. Calculate the capacitance value corresponding to resona

[answerhappygod]

Q1 A For A Tcsc Circuit L 5 Mh Firing Angle Is 45 F 50 Hz Calculate The Capacitance Value Corresponding To Resona 1 (122.89 KiB) Viewed 33 times

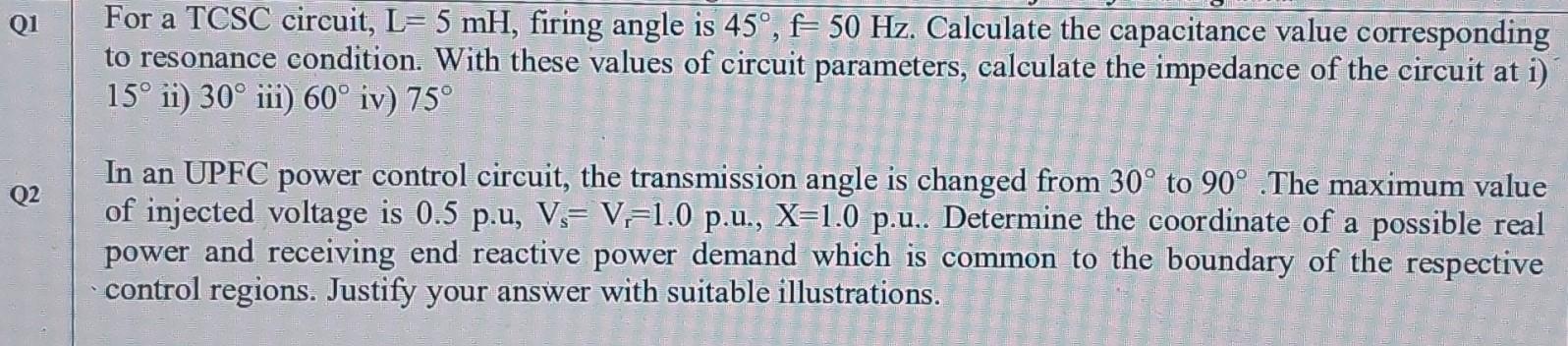

Q1 a For a TCSC circuit, L= 5 mH, firing angle is 45°, f= 50 Hz. Calculate the capacitance value corresponding to resonance condition. With these values of circuit parameters, calculate the impedance of the circuit at i) 15° ii) 30° iii) 60° iv) 75° Q2 In an UPFC power control circuit, the transmission angle is changed from 30° to 90° The maximum value of injected voltage is 0.5 p.u, V=V=1.0 p.u., X=1.0 p.u.. Determine the coordinate of a possible real power and receiving end reactive power demand which is common to the boundary of the respective control regions. Justify your answer with suitable illustrations.
