Tin Assume a network has a voltage level of 132kV, the fault level in the busbar can range between 1.2-1.8 GVA, and the

Post by answerhappygod »

Tin Assume A Network Has A Voltage Level Of 132kv The Fault Level In The Busbar Can Range Between 1 2 1 8 Gva And The 1
Tin Assume A Network Has A Voltage Level Of 132kv The Fault Level In The Busbar Can Range Between 1 2 1 8 Gva And The 1 (85.22 KiB) Viewed 30 times

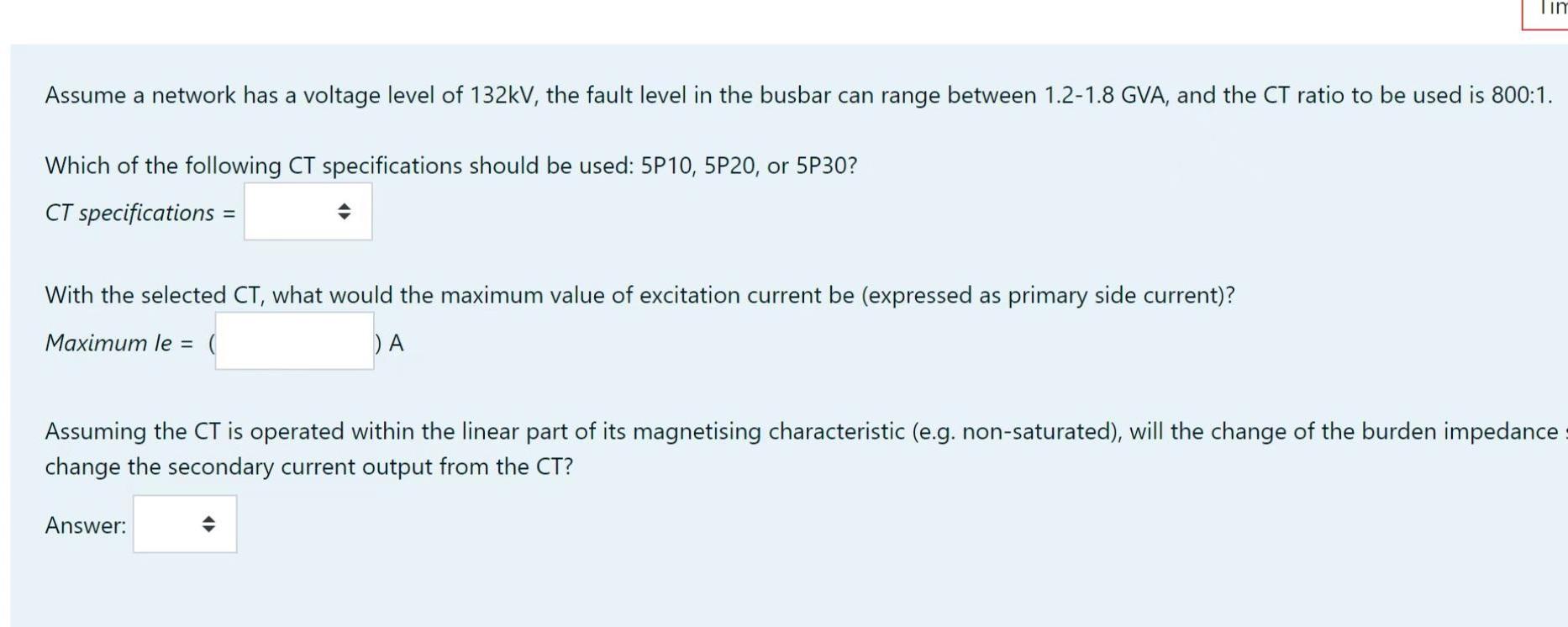

Tin Assume a network has a voltage level of 132kV, the fault level in the busbar can range between 1.2-1.8 GVA, and the CT ratio to be used is 800:1. Which of the following CT specifications should be used: 5P10, 5P20, or 5P30? CT specifications = With the selected CT, what would the maximum value of excitation current be (expressed as primary side current)? Maximum le = ( DA Assuming the CT is operated within the linear part of its magnetising characteristic (e.g. non-saturated), will the change of the burden impedance change the secondary current output from the CT? Answer: -
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
