9 A three-phase Y-connected 220-V , Shp, 60-Hz and six-pole induction motor has the following parameter values in 2/phas

Post by answerhappygod »

9 A Three Phase Y Connected 220 V Shp 60 Hz And Six Pole Induction Motor Has The Following Parameter Values In 2 Phas 1
9 A Three Phase Y Connected 220 V Shp 60 Hz And Six Pole Induction Motor Has The Following Parameter Values In 2 Phas 1 (23.03 KiB) Viewed 47 times

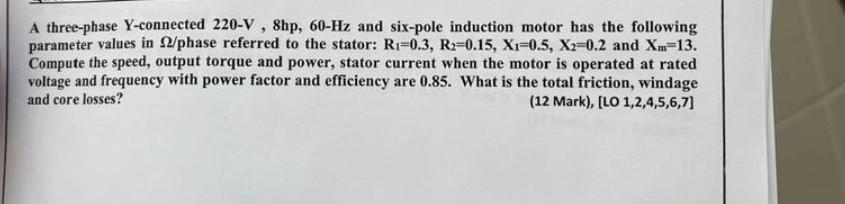

9 A three-phase Y-connected 220-V , Shp, 60-Hz and six-pole induction motor has the following parameter values in 2/phase referred to the stator: Ra=0.3, Rz=0.15, X1=0.5, X2=0.2 and Xm-13. Compute the speed, output torque and power, stator current when the motor is operated at rated voltage and frequency with power factor and efficiency are 0.85. What is the total friction, windage and core losses? (12 Mark), [LO 1,2,4,5,6,7)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
